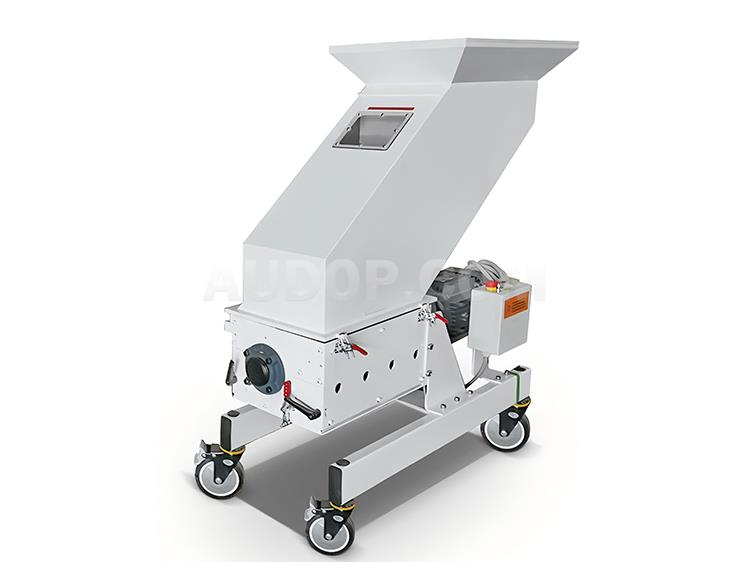

Medium-Speed Machine-Side Plastic Crusher
- Low noise and no dust emission—creating a clean and comfortable working environment for production line engineers and workshop staff.
- Strong crushing capacity and safe, stable operation—effectively handling large quantities of plastic runner scraps and ensuring consistent processing quality for factory production lines.
- Adopting axial sprocket drive, it reduces bearing wear. Compared with traditional crusher structures, it operates more stably and reliably, reducing the frequency of equipment failures and lowering maintenance costs for enterprises.
- Equipped with an adjustable pneumatic material pushing device, it facilitates easy feeding, reduces the jumping and impact of thick materials and block materials during crushing, and avoids material blockage. This also helps reduce noise, ensures more stable crushing, and improves crushing output—meeting the high-efficiency production demands of plastic manufacturing factories.
- It has a solid and well-made rotor device. The optimally designed smooth rotor and stepped rotor blades increase cutting torque, improve crushing effect, and help crush hard-to-break, thick ?? materials. This expands the application scope of the crusher, making it suitable for various plastic waste treatment scenarios in different industries.
Overview
The medium-speed plastic crusher is suitable for the crushing and recycling of plastic runner scraps. It features simple operation and excellent performance, making it an ideal choice for plastic processing factories to handle waste materials efficiently.With a moderate operating speed, this plastic crusher minimizes the generation of plastic dust and noise, as well as reduces tool wear to the lowest level. Additionally, it is equipped with multiple safety protection devices to ensure safe operation for production line engineers.The medium-speed plastic crusher has a compact size, occupying little floor space. It boasts low dust, low noise, and low energy consumption. Its optimally designed tool holder allows for maintenance and cleaning without the need for any tools, saving time and labor for factory maintenance teams.
The diameter of the rotating shaft of the medium-speed plastic crusher is designed based on the rotating width, and both sides are supported by bearings, ensuring stable and smooth crushing of materials. It adopts a stepped tool holder design, which enhances cutting torque, enables continuous and effective cutting, and is more adaptable to the crushing and recycling of various types of plastic materials—perfect for meeting the diverse needs of plastic product manufacturers.
The medium-speed plastic crusher features a superior, quick, and safe disassembly and assembly design. The bearing seat and screen seat can be separated mainly through the front plate of the crusher body. The screen seat is fixed with a strong clamp, allowing for easy and quick disassembly of the screen seat, which facilitates material cleaning, maintenance, and upkeep—greatly improving the work efficiency of production line operators.
The medium-speed plastic crusher is suitable for placement beside production machines. It can be used in conjunction with recyclers, dryers, and other equipment to form a complete rapid recycling system. This system eliminates the cumbersome intermediate links in the recycling process, helping factory managers reduce production costs and improve resource utilization.
Advantages:
- It greatly avoids the waste of human and material resources caused by inefficient recycling, thereby achieving the best recycling effect. This helps procurement departments of related companies control costs and enhance the economic benefits of the enterprise.
- The machine operates with low noise, occupies little space, has low power consumption, and can be used continuously around the clock. It is suitable for long-term production needs of plastic processing workshops, ensuring uninterrupted waste material treatment.
- It does not cause dust or pollution, making it a high-performance, efficient, and environmentally friendly product. It complies with environmental protection requirements of industrial production, helping factories achieve green and sustainable operations.
Technical Parameters
Technical Parameters
| Model | ADP-180 | ADP-240 | ADP-300 | ADP-360 | ADP-420 | ADP-510 | ADP-610 |
| Voltage | 380V/50HZ | ||||||
| Power(KW) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 5.5 |
| Moving Blade (pieces) | 18 | 24 | 30 | 36 | 42 | 51 | 60 |
| Stationary Knife (pieces) | 2 | 2 | 2 | 2 | 2 | 2 | 4 |
| Crusher opening size(mm) | 180×280 | 240×280 | 300×280 | 360×280 | 400×280 | 510×400 | 600×400 |
| Feed Inlet Size(mm) | 500×320×56 | 550×380×58 | 550×440×58 | 630×500×58 | 640×560×58 | 650×700×80 | 780×760×120 |
| Fan Power(kw) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| Motor Power(KW) | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 5.5 |
| Mesh Size(mm) | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Output(kg/h) | 150 | 200 | 300 | 400 | 500 | 600 | 750 |
| Overall Machine Size(mm) | 800×450 ×1090 | 900×500 ×1370 | 900×500 ×1420 | 1050×600 ×1500 | 1050×650 ×1500 | 1300×800 ×1570 | 1350×980 ×1750 |
| Weight(kg) | 167 | 189 | 208 | 236 | 251 | 420 | 450 |
Your requirements are the basis for our development and a daily challenge to bring to fruition, please do not hesitate to inquiry us.
