What Are the Reasons That Can Cause Abnormal Discharge of the Horizontal Plow Mixer

What Are the Reasons That Can Cause Abnormal Discharge of the Horizontal Plow Mixer?

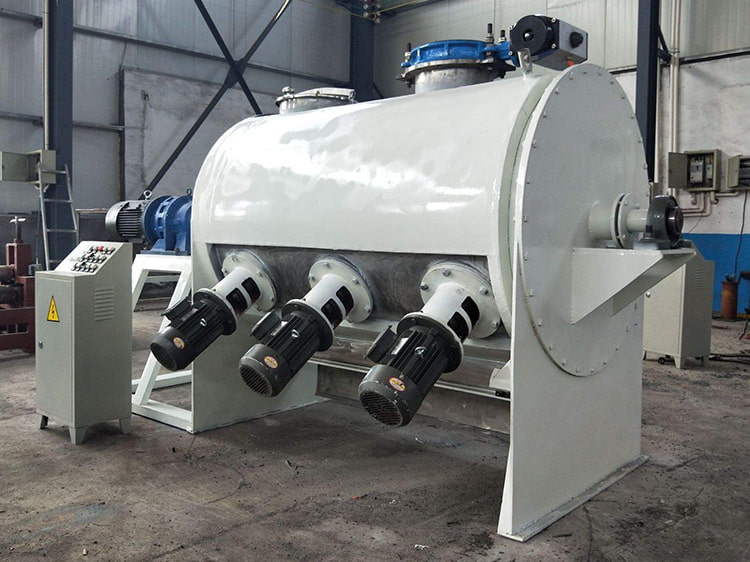

The Audop Horizontal Plow Mixer is designed to handle complex mixing tasks with precision and efficiency. Its powerful plow blades create a fluidized mixing zone for fast and uniform blending, while the optimized discharge system prevents material blockage and ensures smooth operation. Ideal for a wide range of industries, this mixer delivers consistent results and easy maintenance—making it the smart choice for modern production lines.

When it comes to industrial mixing, the Horizontal Plow Mixer is known for its power, speed, and versatility. It’s the workhorse behind uniform blending in industries such as plastics, chemicals, food, and construction materials. However, even this robust machine can occasionally experience “abnormal discharge” — that is, when materials don’t exit the mixer as they should. Understanding why this happens is essential to keeping your production line efficient and your equipment in top condition.

Let’s take a closer look at what could cause the problem.

1. Improper Material Properties

Not all materials behave the same way inside a mixer. Powders with high moisture content, sticky particles, or uneven particle sizes can cling to the plow blades or mixer walls. Over time, this buildup restricts proper discharge and may even lead to blockages. If you often handle materials that are prone to caking, regular cleaning and surface treatment are a must.

2. Incorrect Blade or Shaft Speed

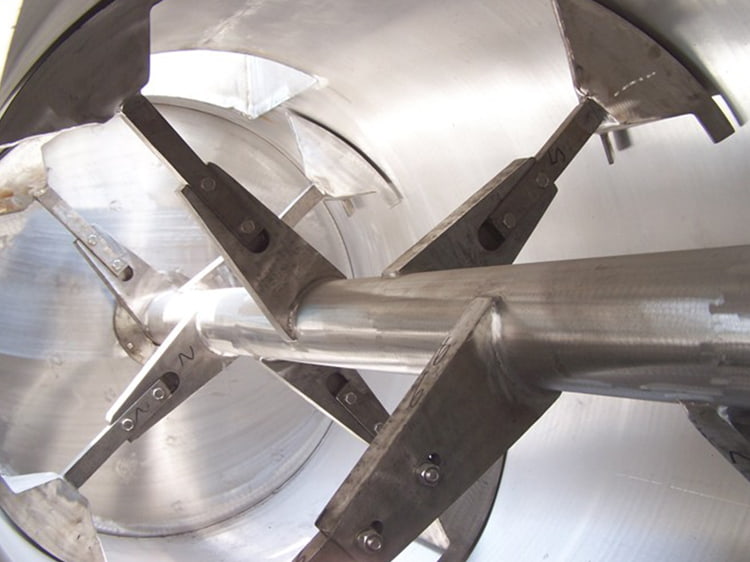

The Horizontal Plow Mixer relies on high-speed plows and optional choppers to create a fluidized mixing zone. If the rotation speed is set incorrectly — either too fast or too slow — the mixing pattern can change, affecting how materials move toward the discharge outlet. A speed that’s too low may leave materials clinging inside, while excessive speed can cause turbulence that prevents smooth unloading.

3. Discharge Valve Malfunction

A worn or poorly sealed discharge valve is one of the most common culprits behind abnormal discharge. If the valve doesn’t open fully or is jammed with residue, materials will struggle to exit properly. Regular inspection and maintenance of the valve, seals, and actuators can prevent this issue before it interrupts production.

4. Uneven Load or Improper Feeding

Overloading the mixer — or, conversely, running it with too little material — can cause inconsistent mixing and poor discharge performance. When the mixer is too full, the material may compact and stick together, especially at the discharge end. On the other hand, an underloaded mixer doesn’t create enough particle movement for complete discharge. Finding the right load ratio is key to stable operation.The feeding speed causes uneven mixing. At this point, we need to check if the feeding speed is slow, and if the belt is slipping and affecting the speed.

5. Design or Installation Issues

Sometimes, the root cause lies not in operation but in setup. If the mixer is not installed at the correct angle or the discharge port isn’t properly aligned, gravity won’t assist in material flow as intended. Using a well-designed model — such as those offered by Horizontal Plow Mixer manufacturers — ensures that every detail, from the shape of the trough to the position of the outlet, promotes smooth and complete discharge.

6. Insufficient Maintenance

Mixers work hard — and like any industrial machine, they need care. Dust accumulation, worn bearings, or damaged seals can alter internal pressure and create uneven discharge. Routine maintenance schedules, including lubrication, inspection, and cleaning, keep your Horizontal Plow Mixer running like new.

Conclusion

Abnormal discharge in a horizontal plow mixer isn’t just an inconvenience; it can signal deeper operational or mechanical issues. The good news? Most of these problems can be avoided through proper setup, regular maintenance, and understanding your material’s behavior. Investing in a reliable and well-engineered Horizontal Plow Mixer can make all the difference between constant downtime and smooth, efficient production.

When your mixer works right, everything downstream works right — and that’s the real secret behind consistent quality.
