Centrifugal Dehydrator
- Excellent Performance:The working speed of the high - speed forced centrifugal dehydrator is more than twice that of ordinary centrifugal dehydrators. It has a strong negative pressure self - cleaning function, which can effectively prevent powder from blocking the dehydration sieve holes, ensuring the stable operation of the centrifugal dehydrator.
- High - Quality Accessories:The centrifugal dehydrator adopts imported double - row high - speed bearings, is designed with a continuous cooling bearing seat, undergoes high - precision dynamic balance adjustment, and is equipped with effective sound insulation, noise reduction and shock absorption designs, which improves the service life and stability of the centrifugal dehydrator.The discharge part of the high - speed centrifugal dehydrator is equipped with a positive pressure enhanced suction machine, which enhances the material discharge efficiency of the centrifugal dehydrator.The main motor of the centrifugal dehydrator is of a domestic first - tier brand, ensuring the powerful power output of the centrifugal dehydrator.
- Intelligent Control:It is controlled by PLC, which can automatically adjust and control the feeding amount, conduct automatic detection and alarm, and has an overload protection function, making the operation of the centrifugal dehydrator more intelligent and safe.
- Convenient Maintenance:The wear - resistant parts of the centrifugal dehydrator adopt a detachable design; the bottom is equipped with a spiral material collecting device to prevent slag accumulation and reduce normal maintenance time of the centrifugal dehydrator.The screen of the centrifugal dehydrator is made of 304 stainless steel plate, with a rotation function, and the rotating screen frame has an automatic cleaning function, reducing the maintenance workload of the centrifugal dehydrator.
- Structural Advantages:The rotating drum of the centrifugal dehydrator is made of stainless steel plate through fine processing, which is firm and durable; it has a unique brake opening and closing arm device with good braking performance, safe and reliable for the centrifugal dehydrator.The centrifugal dehydrator adopts V - belt transmission, and the motor drives the starting wheel to start slowly to the normal speed, running smoothly without vibration.The inner cylinder, outer shell and rotating drum of the centrifugal dehydrator are all made of stainless steel plate materials, the cage base and chassis are made of cast iron materials, and the main shaft is made of high - quality steel through heat treatment and fine processing, ensuring the overall quality of the centrifugal dehydrator.
Overview

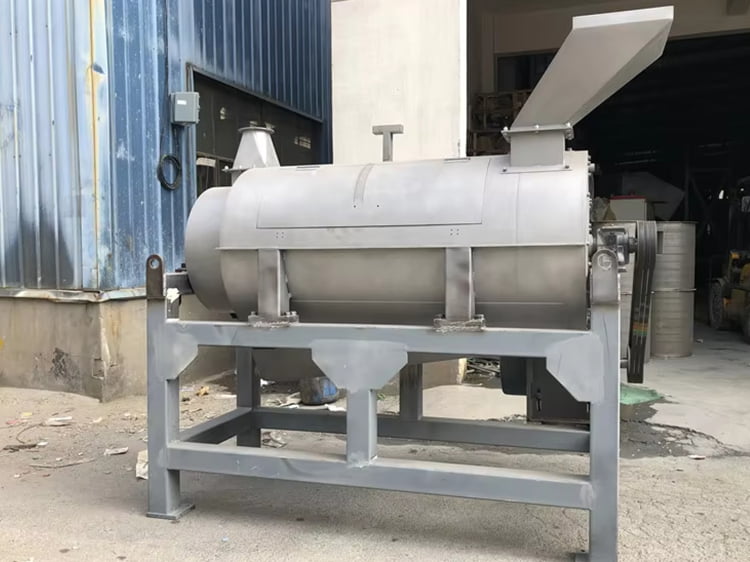

Horizontal centrifugal dehydrator is mainly used for fast and efficient dehydration of soft plastics after crushing and cleaning to achieve high-quality dry granulation. The plastic sheets after dehydration can be fully stretched, with extremely low moisture content and as clean as new.There is also automatic centrifugal dehydrator, which is used for the dehydration of various crushed scraps. For example, it is matched with polyester high-orange material for automatic spin-drying, and can also dehydrate ABS, PP and PE crushed materials.
Working Principle:
It adopts centrifugal dehydration mode, and realizes fast dehydration of materials through the centrifugal force generated by high-speed rotation. This centrifugal dehydrator efficiently removes moisture from materials by utilizing the principle of centrifugal force.
Application Range:
The centrifugal dehydrator is mainly used for the dehydration of film materials and sheet plastics, and is especially suitable for the assembly line dry granulation of high - value packaging films such as imported 95 films and 98 films, meeting the needs of plastic processing enterprises for efficient dehydration.It can also be used for the dehydration and drying of various textiles (knitwear), clothing, printing and dyeing, food, hardware, chemical raw materials, latex products, etc. after washing. The centrifugal dehydrator is widely applicable to enterprises and institutions in textile, printing and dyeing, clothing, hotels, hospitals, chemical industry, food, hardware, mechanical parts and latex products industries.
Maintenance:
- Operators must be familiar with the structure, performance and operation method of the centrifugal dehydrator to ensure correct operation.
- Before starting the centrifugal dehydrator, rotate the rotating drum for several turns to check the operation of the rotating drum.
- The feeding of the centrifugal dehydrator should be evenly distributed to avoid excessive vibration of the machine due to excessive weight imbalance.
- During the normal operation of the centrifugal dehydrator, do not brake the opening and closing arm to avoid damaging the belt and other parts.
- No items can be placed on the top cover of the centrifugal dehydrator to prevent accidents after starting the machine.
- Once abnormal phenomena are found during the operation of the centrifugal dehydrator, the power supply should be cut off immediately, and the machine should be braked and stopped for inspection.
- The centrifugal dehydrator must be regularly overhauled and filled with lubricating oil, and overhauled at least once every six months to ensure its long - term stable operation.
Technical Parameters
Technical Parameters
Model | ADP752-500 | ADP753-600 | ADP752-800 | ADP751-1000 | ADP754-1200 | ADP301-1500 |
roller diamete(MM) | 500 | 600 | 800 | 1000 | 1200 | 1500 |
Drum height(MM) | 250 | 300 | 330 | 370 | 480 | 600 |
Speed(R/MIN) | 960 | 960 | 910 | 900 | 700 | 750 |
Power(KW) | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 11 |
Maximum Capacity(KG) | 25 | 45 | 80 | 130 | 220 | 500 |
Size(MM) | 960×960 | 1200×1200 | 1450×1450 | 1800×1800 | 2050×2050 | 1550×1950 |
Weight(KG) | 250 | 450 | 760 | 1100 | 1600 | 2400 |
