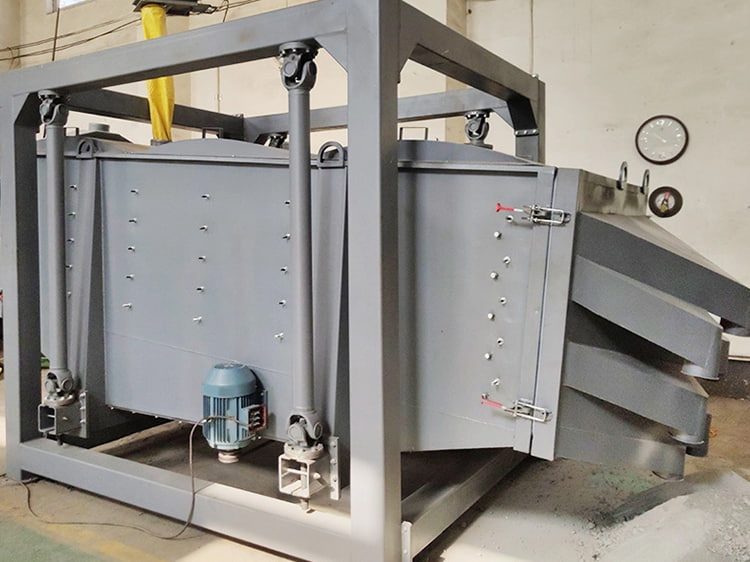

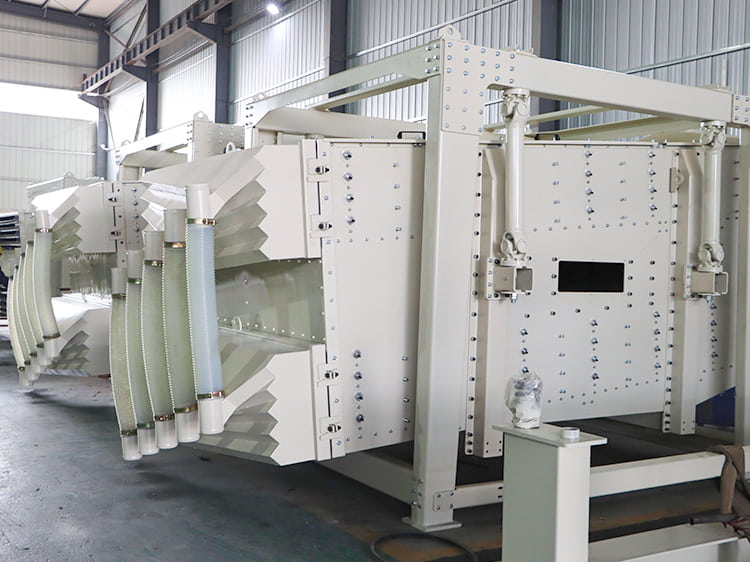

Square Swing Sifter
- Large sifting capacity: With multi-layer classification design, one square swing sifter can be divided into two groups for operation. One machine is equivalent to multiple machines in use, doubling the output. This high-capacity square swing sifter meets the large-scale sifting needs of enterprises.
- Fully enclosed structure: The square swing sifter has a fully enclosed structure, which prevents dust from flying. Meanwhile, the sifter machine has small vibration and low noise, creating a good working environment for the workshop. This environmentally friendly square swing sifter is suitable for various industrial workshops.
- Flexible sifting: The square swing sifter adopts flexible sifting technology, and its acceleration is 4-5 times lower than that of ordinary vibrating sifters. This reduces wear and tear, improves the service life of the equipment, and thus reduces maintenance costs. The durable square swing sifter helps enterprises save operating costs.
- Convenient sifter replacement: The square swing sifter is designed with easy sifter replacement, simple operation, and is firm and reliable. This user-friendly design of the square swing sifter reduces the difficulty of daily operation and maintenance for workers.
- Large-scale electrostatic spraying process: The square swing sifter adopts a large-scale electrostatic spraying process, making the equipment more beautiful, wear-resistant and rust-resistant. This high-quality square swing sifter maintains good performance and appearance even in harsh working environments.
Overview
The square swing Sifter, also known as the rectangular swing Sifter, is a high-precision and high-capacity sifting equipment. It features self-cleaning Sifter function, with high Sifter utilization rate, long service life and excellent sealing performance. This square swing Sifter is an ideal choice for industrial sifting needs.Simply pursuing sifting precision will come at the cost of reducing output, while pursuing high output will lead to a decline in precision. The square swing Sifter is a high-precision and high-capacity sifting equipment specially designed to solve the above problems, making it a reliable industrial sifting equipment for various industries.The square swing Sifter is widely used in industries such as chemical industry and new materials, metallurgy, metal powder, mineral powder, food, salt, sugar, abrasives, feed and more. It is a versatile industrial sifting machine suitable for multiple application scenarios.The square swing vibrating Sifter transmits the vibration and swing motion generated by the vibrator to the Sifter surface, so that the materials are quickly dispersed at the front of the Sifter machine, thereby achieving the purpose of sifting. This working method ensures efficient and effective material separation with the square swing Sifter.
Working Principle of Square Swing Sifter:
From the perspective of the movement trajectory of the Sifter shaker body, i.e., the Sifter box, the square swing Sifter is also called the curved Sifter. The vibration force generated by its driving device is an inertial force that revolves around a fixed axis and changes direction in a regular pattern. Essentially, it is a reciprocating inertial force formed by the rotation of an eccentric wheel around a fixed axis. This unique design of the square swing Sifter ensures stable and efficient vibration transmission.According to the structural characteristics and working principle of the square swing vibrating Sifter, its Sifter surface is generally arranged horizontally or slightly inclined, which is conducive to the smooth movement and sifting of materials on the square swing Sifter.After the Sifter machine is started, the Sifter shaker body, i.e., the Sifter box, makes a back-and-forth reciprocating movement under the action of inertial force. The Sifter box drives the Sifter surface to shake periodically, so that the materials on the Sifter surface make a directional jumping movement together with the Sifter box. This movement mode of the square swing Sifter promotes effective material classification.During this process, materials smaller than the Sifter hole diameter pass through the Sifter holes and fall to the lower layer to become undersize materials. Materials larger than the Sifter hole diameter are discharged from the discharge port after continuous rolling and jumping movements, thus completing the sifting work. The square swing Sifter ensures accurate and efficient material separation in this way.
Structure of Square Swing Sifter:
The square swing Sifter is mainly composed of components such as the Sifter box, driving device, Sifter frame, support frame and vibration damping device. Each component of the square swing Sifter is carefully designed to ensure the overall stability and efficiency of the equipment.
Sifter box: It includes components such as the Sifter frame, Sifter mesh, Sifter grid, spring clips and bouncing balls. Among them, the Sifter frame is equipped with upper and lower layers of Sifter mesh. The Sifter mesh is tensioned on the Sifter grid through spring clips arranged around the Sifter grid, and the bouncing balls are arranged in the grid of the Sifter grid. These details of the square swing Sifter's Sifter box ensure effective sifting and self-cleaning functions.Driving device: It includes components such as the driver, motor, locking sleeve, locking round nut, stop washer and taper sleeve. Among them, the taper sleeve is fixed on the Sifter frame, and the drive shaft of the driver is set in the taper sleeve and its position is connected and fixed through the locking sleeve. The stable driving device of the square swing Sifter ensures the continuous and efficient operation of the equipment.
Sifting Range of Square Swing Sifter:
It can Sifter particles, powders and mucus within a certain range. The square swing Sifter can Sifter as fine as 500 meshes or 0.028mm, and the minimum filtration can reach 5 microns. This wide sifting range makes the square swing Sifter suitable for various material sifting needs.For example, it can be used for classified sifting of materials such as quartz sand, perlite, graphite, mung beans, Longyan mineral sand, metal powder, metallic silicon, etc. The square swing Sifter can be equipped with 1 to 5 layers of Sifter mesh, and can perform sorting or filtration of 2 to 6 grades at the same time. This multi-functional square swing Sifter meets the diverse sifting requirements of different industries.
Layered Combination:
The square swing Sifter is a sifting equipment that can be designed and modified according to the customer's material requirements. It can be made into a combination of single box, double boxes, triple boxes and four boxes. The number of Sifter mesh layers can also be changed in each layer of the box to make reasonable use of its sifting advantages. This customizable square swing Sifter meets the personalized sifting needs of different customers.One square swing Sifter can achieve the sifting efficiency of several traditional Sifter machines, and several machine types can be made according to requirements. This high-efficiency square swing Sifter helps enterprises save equipment investment and improve production efficiency.
Technical Parameters
Technical Parameters
| Model | Effective Screening Diameter（mm） | Effective Screening Area（㎡） | Screen Mesh Specification (Mesh number/hour) | Layer（S） | Power（KW） | |
Common Motor | Vibration Motor | |||||
| CSB-600 | φ540 | 0.2289 | 2-500 | 1-5 | 0.75 | 0.18-0.25 |
| CSB-800 | φ730 | 0.4183 | 1.1 | 0.25-0.55 | ||
| CSB-1000 | φ600 | 0.6359 | 1.5 | 0.75-1.1 | ||
| CSB-1200 | φ1100 | 0.9499 | 1.5 | 1.1-1.5 | ||
| CSB-1500 | φ1400 | 1.5386 | 2.2 | 1.5-3 | ||
| CSB-1800 | φ1700 | 2.2687 | 3 | 3-4.5 | ||
| CSB-2000 | φ1900 | 2.7922 | 3 | 3-4.5 | ||
Your requirements are the basis for our development and a daily challenge to bring to fruition, please do not hesitate to inquiry us.
