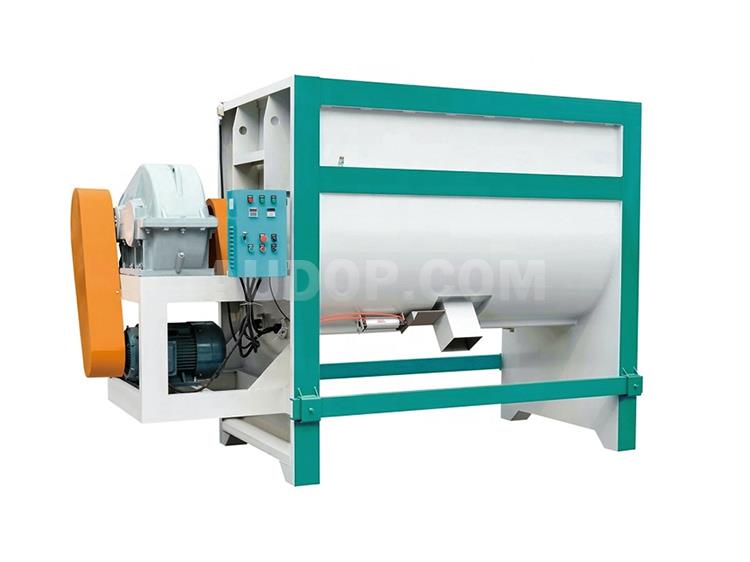

Horizontal Mixer

The horizontal mixer is an efficient and versatile industrial mixing equipment, specifically designed for uniformly mixing materials of different properties. With its unique horizontal structure and excellent mixing performance, it has become an ideal equipment for powder mixing, particle mixing, and solid-liquid mixing in numerous industries. This horizontal mixer features easy operation and convenient maintenance, capable of meeting the requirements of various mixing processes.

The horizontal mixer is a mixing equipment widely used in multiple industries, and its core advantage lies in efficiently achieving uniform mixing of different materials. Adopting a horizontal structural design with a horizontal layout of the main shaft, this horizontal mixer provides a stable solution for the mixing needs of various sheet materials, powders, particles, and pastes, and is a commonly used equipment in the material mixing process. It has the characteristics of good mixing effect and simple structure, and is widely used in chemical, pharmaceutical, food, building materials and other industries. When using a horizontal mixer, selection should be based on the characteristics of the materials. For example, for materials that are easy to agglomerate, a mixer with intermittent mixing function should be selected to avoid agglomeration. For viscous materials, a horizontal mixer with a faster rotating speed of the agitator should be chosen to ensure full mixing of the materials.

Main Structure:

• Barrel: Usually adopts a U-shaped long barrel structure, made by bending thick and wide steel plates. This design ensures that the mixed materials (powders, semi-fluids) move with low resistance inside the barrel, while having sufficient rigidity to ensure the parallelism and concentricity of the mixing shaft of the horizontal mixer.
• Mixing Device: As the core component, it is composed of a main shaft, mixing arms, and blades. The blades are mostly spiral-shaped, with common double-layer or three-layer designs. The outer spiral gathers materials from both sides to the center, and the inner spiral conveys materials from the center to both sides, forming a vortex and accelerating the mixing speed. The mixing arms are designed based on fluid mechanics, with high strength, which can reduce resistance and wear during mixing of the horizontal mixer.
• Mixing Device: As the core component, it is composed of a main shaft, mixing arms, and blades. The blades are mostly spiral-shaped, with common double-layer or three-layer designs. The outer spiral gathers materials from both sides to the center, and the inner spiral conveys materials from the center to both sides, forming a vortex and accelerating the mixing speed. The mixing arms are designed based on fluid mechanics, with high strength, which can reduce resistance and wear during mixing of the horizontal mixer.
• Sealing Device: The shaft end seal is composed of a bearing seat, bearings, and a lubricating oil circuit, which is used for supporting and positioning the mixing shaft. The high-pressure lubricating oil circuit lubricates, dissipates heat, and seals the bearing seat and the shaft head of the mixing shaft, forming a sealed oil cavity to prevent material erosion of the horizontal mixer.
• Discharging Device: For powder materials, a pneumatic large door structure is generally adopted, which enables fast discharging without residue; for high-fineness materials or semi-fluid materials, manual butterfly valves or pneumatic butterfly valves are used in the horizontal mixer.

Working Principle:

After the motor is started, power is transmitted to the mixing main shaft through the transmission components. The mixing main shaft drives the mixing arms and blades to rotate, and the blades form a vortex in the barrel. Materials are first gathered from both sides to the center, and then conveyed from the center to both sides. Under this rotation, tumbling and sprinkling action, the materials are quickly and uniformly mixed in the barrel. After reaching the predetermined mixing time, the materials are discharged through the discharging device of the horizontal mixer.

Product Applications:

• The horizontal mixer is mainly used for mixing different materials. Through efficient mixing, it realizes the uniform integration of materials, meets the needs of material mixing in the production of various industries, and improves product quality and production efficiency.
• Chemical Industry: Used for mixing powders with powders and powders with liquids, such as various chemical raw materials and additives, by the horizontal mixer.
• Plastic Industry: In the links of plastic granulation, color masterbatch manufacturing, plastic modification, etc., the horizontal mixer is used to mix plastic particles, additives, etc.
• Food Industry: The horizontal mixer can be used for mixing food raw materials and additives to ensure uniform food ingredients.
• Pharmaceutical Industry: The horizontal mixer meets the mixing needs of various materials in pharmaceutical production and ensures stable pharmaceutical quality.
• Building Materials Industry: Used for material mixing in the production process of dry-mixed mortar, putty powder, special building materials, etc., the horizontal mixer plays an important role.
• Feed Industry: The horizontal mixer realizes the uniform mixing of feed raw materials and ensures balanced feed nutrition.

Maintenance :

• Regularly Inspect the Mixing Device: Check whether the mixing blades and mixing arms of the horizontal mixer are worn or deformed. If there are problems, replace them in time to avoid affecting the mixing effect and the normal operation of the equipment.
• Pay Attention to Transmission Components: Regularly check the operation status of the motor, reducer, transmission shaft and other components of the horizontal mixer, and timely supplement or replace the lubricating oil to ensure stable transmission and reduce the occurrence of faults.
• Inspect the Sealing Device: Ensure that the sealing device of the horizontal mixer is in good condition to prevent material leakage and dust entry, which may affect the equipment performance and service life.
• Clean the Equipment: Clean the inside and outside of the horizontal mixer in time after each use to avoid material residue corroding the equipment.
• Storage Environment: When the horizontal mixer is not used for a long time, it should be stored in a dry and ventilated environment to prevent rusting.
