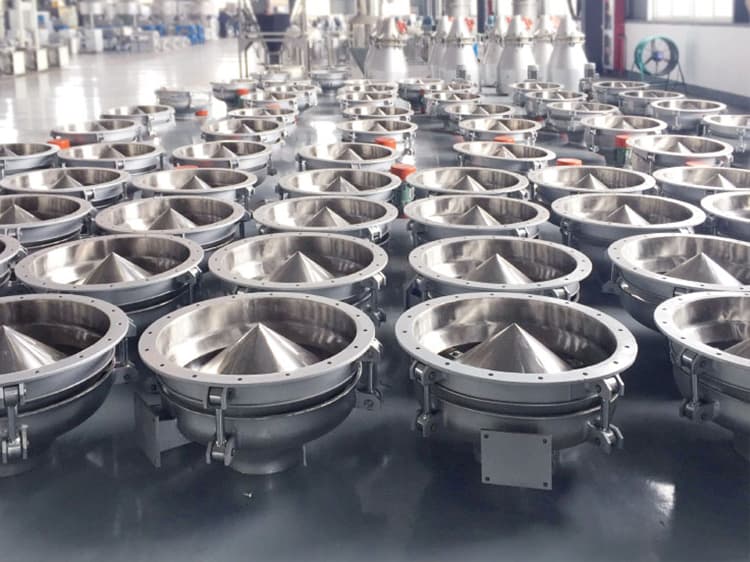

Bin Bottom Vibratory Discharger
More Pictures
Features
- Low power consumption, high efficiency and obvious effect.
- The discharge hopper is integrally stamped, with good rigidity and smooth inner wall. The built-in tapered discharge plate protrudes upward to ensure no material residue in the discharger.
- The vibration force and amplitude can be easily adjusted.
- The fixing bolts of the discharge plate are assembled from top to bottom, which improves safety.
- Low noise generated by vibration, meeting environmental protection requirements.
- Safe and reliable to use, with safety protection devices.
- Simple and novel equipment structure, convenient installation and low maintenance rate.
Overview

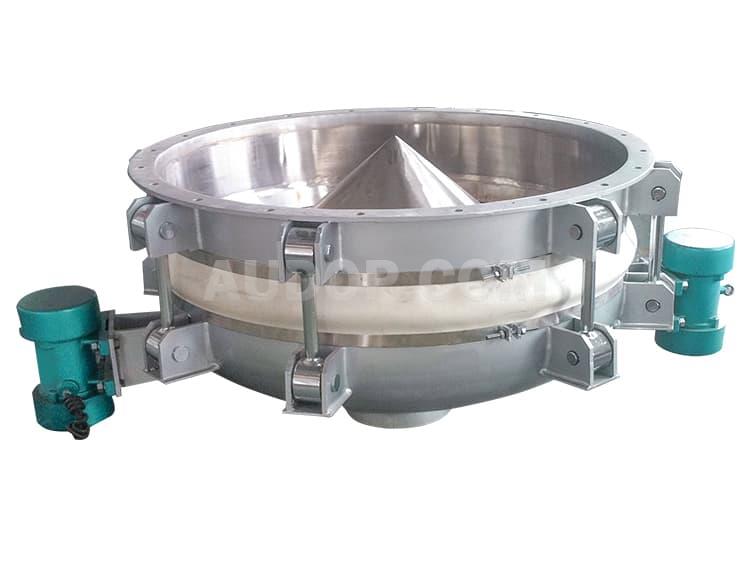

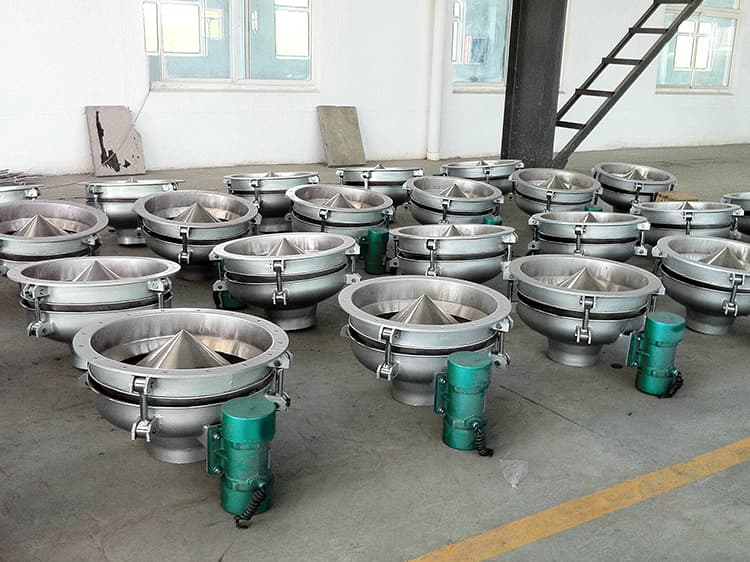

Bin bottom vibratory discharger, also known as activated hopper, takes vibration motor as power source and vibration exciter. It is a kind of vibratory feeding equipment, installed at the lower part of various bins. By using high-frequency vibration, it breaks the material arching phenomenon, makes materials discharge evenly from the outlet, effectively eliminates material arching, blocking and sticking to the bin, and solves the problem of difficult bin discharging.This vibratory discharger is widely used for silo discharging in flour blending, feed, cement, pharmaceutical and other industries.This vibratory discharger product has simple structure, reliable performance, strong arch-breaking ability, no core-pulling, stable operation. It can realize uniform, stable, continuous and accurate discharging of various granular and powdery materials.
Vibratory discharger is suitable for bin bottom discharging of flour-like powdery materials such as flour, feed, chemical and pharmaceutical materials.It takes vibration motor as vibration source to drive the discharge hopper to vibrate at high frequency. A conical discharge plate is set at the center of the discharge hopper, which promotes the slow and uniform flow of materials in the bin from the outlet and prevents material arching in the bin. It is an efficient bin bottom discharging equipment.
Application of Bin Bottom Vibratory Discharger:
Application: Mainly used in building materials, chemical, metallurgy, machinery, ceramics, grain, food, glass, plastic, rubber, mining, pharmaceutical and other industries for vibratory discharging.
Application Scope: Vibratory discharging when materials are discharged from the bin, ensuring smooth material passing without arching.
Applicable Materials: Starch, flour, fiber, protein powder, feed, etc.
Advantages of Bin Bottom Vibratory Discharger:
- Excellent arch-breaking performance. It can realize arch-breaking and continuous uniform discharging for various powdery and granular materials in the bin, and eliminate the segregation phenomenon of mixed materials with different particle sizes and specific gravities when entering the bin.
- It has the advantages of simple structure, light weight, reliable operation, stable operation, low noise, low power consumption, easy operation, few wearing parts, long service life, small maintenance workload and wide adjustment range of productivity.
- Suitable for any round, square, steel or concrete bin. It can realize fully sealed conveying, with no dust emission and no environmental pollution.
- All bearings are self-lubricating, no lubrication is needed during regular maintenance; the vibratory discharger has a solid structure and is maintenance-free, which greatly reduces the maintenance time.
- Reasonable design ensures high hygiene. All components in contact with materials adopt streamlined geometric design to ensure no automatic classification discharging of stored materials; the vibratory discharger is designed with dust-proof design to minimize material residue and essentially avoid material residue.
Technical Parameters
Technical Parameters
| Model | Diameter of the hopper(mm) | Bin diameter(mm) | Reference traffic volume | Power(kw) | Excited force(kw) | The largest material(mm) | |
| Cement(T/H) | Raw material(T/H) | ||||||
| ADP-400 | ф400 | 400-800 | 6-13 | 4-7 | 0.15 | 0～9.5 | 15 |
| ADP-600 | ф600 | 600-1200 | 8-20 | 7-13 | 0.25 | 0～2.5 | 20 |
| ADP-800 | ф800 | 800-1600 | 35-50 | 15-30 | 0.4 | 0～5 | 22 |
| ADP-1000 | ф1000 | 1000-2000 | 50-80 | 20-50 | 0.75 | 0～8 | 28 |
| ADP-1200 | ф1200 | 1200-2400 | 50-100 | 30-70 | 1.5 | 0～16 | 32 |
| ADP-1500 | ф1500 | 1500-3000 | 60-120 | 40-80 | 1.5 | 0～16 | 35 |
| ADP-2000 | ф2000 | 2000-4000 | 80-160 | 60-100 | 2×1.5 | 0 ~ 32 | 42 |
Your requirements are the basis for our development and a daily challenge to bring to fruition, please do not hesitate to inquiry us.
