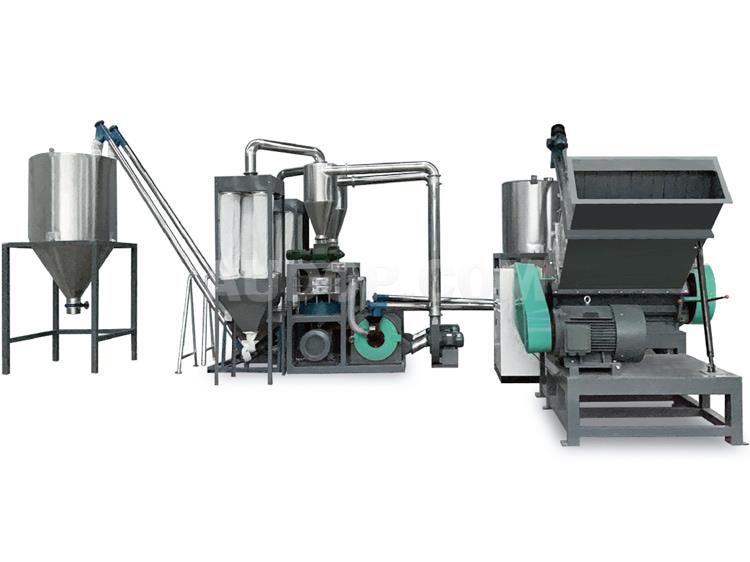

Crushing And Milling Production Line
More Pictures
Features
- Closed dust treatment significantly reduces dust in the workshop, making the miller an ideal choice for a clean production environment.
- Adjustable electromagnetic vibration feeding ensures more stable current when the miller is in operation, improving the overall running stability of the crushing and milling production line.
- A closing fan is installed at the discharge port of the cyclone separator, which greatly reduces dust leakage and enhances the environmental protection performance of the miller.
- The use of high-quality bearings, oil seals and high-grade lubricating grease ensures the long-term normal operation of the miller, reducing maintenance costs for users.
- The overall water cooling of the milling chamber ensures that the properties of materials do not change during the crushing process, which is crucial for maintaining the quality of recycled materials in the crushing and milling production line.
- It has high production efficiency, with a significantly higher output compared to old-fashioned turbine millers, which can effectively improve the production capacity of the crushing and milling production line.
- The milling chamber door can be opened, allowing for quick cleaning of the milling chamber and fast and convenient replacement of moving knives and gear plates, saving maintenance time for the miller.
- High-quality accessories, strict manufacturing requirements and a rigorous manufacturing process ensure the quality of the miller, providing reliable equipment support for the crushing and milling production line.
- It has a simple structure, is reliable and durable. The modular design allows the miller to be installed in different directions according to the size of the workshop, enhancing the flexibility of the crushing and milling production line layout.
Overview
Combining years of industry experience and in line with customers' development requirements, the crushing and milling production line is a high-efficiency recycling production line developed by Audop Company for industrial waste in industries such as plastic sheets, profiles, pipes, and floors. It consists of two main pieces of equipment: a crusher and a miller.
The crusher is mainly used for crushing various industrial wastes such as plastic sheets, plates, floors, as well as PVC pipes and profiles. Driven by an electric motor and via V-belt transmission, the rotating blades fixed on the knife shaft and the fixed blades fixed on the machine body perform rotational shearing at a certain angle to repeatedly crush the plastic. After being screened by a sieve, the crushed plastic leaks into the material storage box.
The hopper and upper/lower machine body of the crusher are made of welded steel plates. The hopper and the machine body are connected by a hinge, which facilitates cleaning, knife replacement and adjustment of blade clearance. The sieve frame and the machine body are also connected by a hinge, making sieve replacement easy and the crusher very convenient to use.When adjusting the clearance, first loosen the knife pressing screws, adjust the clearance to the required one, and then fasten the pressing screws.The soft punching chamber feeding and the vertical curtain design at the feed inlet prevent material splashing.The crusher has an elegant and generous appearance, coordinated color matching and a reasonable structure.
Maintenance:
- Install the machine in a suitable position and connect the power supply properly.
- Inspection before idling: Check if the fastening screws of all parts are loose, and tighten them at any time if they are loose. Check whether the clearance between the rotating knife and the fixed knife is reasonable, and check if there are any metals or foreign objects in the machine body. Toggle the flywheel by hand to check if the rotation is flexible.
- Startup: Start the electric motor and check its rotation direction, then feed materials slowly. If overload is found during the crushing process, stop feeding in a timely manner, and resume feeding only after the machine operates normally. In case of any abnormal phenomena, stop the machine immediately and eliminate the faults.
- Regularly check the cutting edges of the fixed knife and the rotating knife. If the cutting edges become blunt, grind them in a timely manner. At the same time, check if the fastening screws of all parts are loose and tighten them at any time if they are. Check whether the clearance between the rotating knife and the fixed knife is reasonable, and check if there are any metals or foreign objects in the machine body. Operators should pay attention to the temperature of each bearing, which generally should not exceed 40 degrees. Add lubricating oil regularly, check the V-belts regularly, and adjust the tightness in a timely manner to ensure normal transmission. If the sieve plate is severely worn, replace it in a timely manner.
Technical Parameters
Technical Parameters
| Machine | Crusher | Pulverizer | Screw Feeder | Storage Silo |
| Power | 75/90/110kW | 75/90/110kW | 1.5/2.2/4kW | capacity 1T/2T/3T |
| Rotational Diameter | 560mm | 1020mm | Diameter 219mm | SS304 |
| Blade (pieces) | 39-6/16-6 | 46-25/2 | / | / |
| Mesh Size | 14mm | 4mm |
Your requirements are the basis for our development and a daily challenge to bring to fruition, please do not hesitate to inquiry us.
