Single-Screw Cone Mixer

Single Spiral Conical Mixer, also known as vertical spiral mixer or conical spiral mixer, is specially designed for batch mixing of powders, pastes and liquids. Its unique conical structure ensures no dead corners during material mixing, while minimizing heat generation—making it particularly suitable for processing thermal-sensitive or fragile materials as a professional industrial mixing equipment.As a high-efficiency and versatile industrial mixing equipment, Single Spiral Conical Mixer plays a key role in the processing of powders, granules and viscous materials, meeting the core mixing needs of industrial production lines.ts unique design combines a conical container with an internal rotating spiral device, achieving uniform material mixing through precise mechanical movement. It is widely used as batch processing equipment in pharmaceutical, food, chemical and feed industries—an essential granular material mixer for industrial applications.

The single-screw cone mixer is an industrial mixing equipment designed for powder, granular and solid-liquid materials, and is widely used in material processing scenarios across multiple industries. With scientific structural design and precise motion control, this single-screw cone mixer achieves uniform mixing of powder-powder, liquid-liquid and powder-liquid materials. It meets the requirements for material mixing precision and efficiency in different production processes, and is an important equipment in the material mixing link of industrial production.

The single-screw cone mixer is an industrial mixing equipment designed for powder, granular and solid-liquid materials. It adopts a conical cylinder and single-screw structure design to ensure no residual material discharge, and is widely used to meet the uniform mixing needs in chemical, pharmaceutical, food additive and other fields. After materials enter the cylinder through the top feeding port, the screw shaft forms three mixing effects of convection, shear and diffusion under the combined motion of revolution and rotation. The materials are lifted to the top along the cone wall and then fall naturally, realizing uniform circumferential and axial distribution.

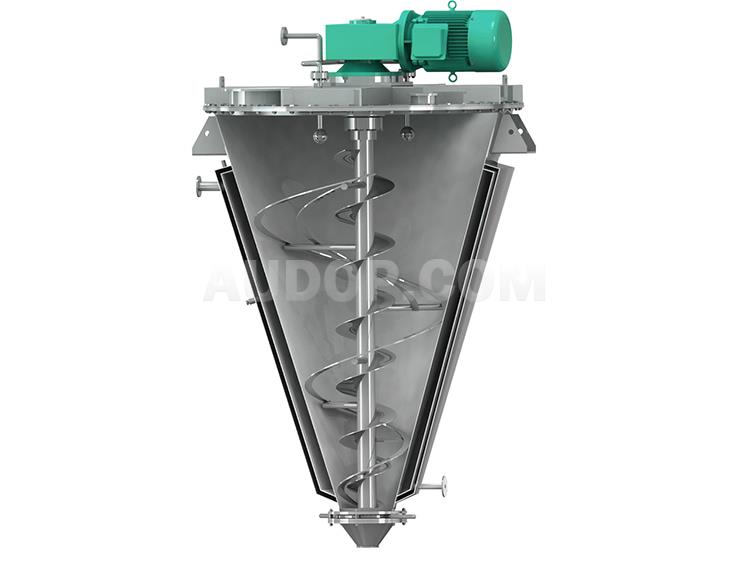

Main Structure of Single-Screw Cone Mixer:

• Screw System: The single-screw shaft drives material circulation through the combined motion of rotation and revolution.
• Transmission Device: The motions of the rotation motor and revolution motor are adjusted to a reasonable speed through worm gears and gears, and then transmitted to the screw to realize both rotation and revolution motions.
• Cylinder Cover Part: The cylinder cover supports the entire transmission part, which is fixed on the cylinder cover with screws. The cylinder cover is equipped with a feeding port, an observation port, a cleaning port and a maintenance hole.
• Cylinder Body Part: The cylinder body has a conical structure and is used for holding materials, enabling rapid and clean discharge without material accumulation and no discharge dead ends.
• Discharge Valve: The discharge valve is installed at the bottom of the cylinder body for controlling materials and discharging. It has three structural forms: manual, pneumatic and electric. A liquid discharge valve (slurry valve) can be added according to user needs.
• Liquid Spraying System (Optional): Supports solid-liquid mixing process with evenly distributed nozzles.

Working Principle of Single Spiral Conical Mixer:

The single-screw cone mixer is connected with a cycloidal reducer to the central screw and the outer ribbon, which operate at the same speed. During operation, the central screw lifts the mixed materials from the bottom to the top. At the same time, the outer ribbon with a higher linear speed lifts the materials upward along the conical barrel wall. Under the action of centrifugal force, these two motions throw the materials into the space along the tangential direction. The materials undergo intense convection, shear and diffusion, so as to achieve the purpose of rapid mixing (the central screw can also be made into a reverse screw).

Application Scope of Single-Screw Cone Mixer:

The single-screw cone mixer is widely used in chemical, metallurgy, food, pharmaceutical, chemical fertilizer, coating, pigment, dye, pesticide, rubber feed, additive, refractory material, fine chemical, new material, electronic plastic, ceramic, mining, building material and other industries. This single-screw cone mixer has a wide adaptability to mixed materials. It can mix and stir powder, granular materials, slurry or viscous materials, and can be equipped with a liquid spraying system. It can be designed into process conditions such as vacuum state, pressure state, heating or cooling according to user requirements, to meet the mixing and stirring of materials under different process conditions. It will not cause overheating to heat-sensitive materials, will not crush or grind granular materials, will not cause stratification and segregation when mixing materials with very different specific gravity and particle sizes, and has good adaptability to the mixing of coarse, fine and ultra-fine particles, fibers or flakes.

Maintenance of Single-Screw Cone Mixer:

• Regular Inspection: Before operation, check whether the connection of the drive system is firm and whether the screw and ribbon are loose or deformed;
• Cleaning and Maintenance: Timely clean the residual materials in the barrel after each use to avoid material accumulation and caking affecting the next mixing effect of the single-screw cone mixer;
• Lubrication Maintenance: Regularly add suitable lubricants to the reducer and rotating parts to ensure smooth operation;
• Load Control: Avoid overloading the equipment due to excessive feeding to extend the service life of the equipment;
• Abnormal Handling: If abnormal conditions such as abnormal noise and vibration occur during operation, stop the machine immediately for inspection, and continue to use it only after troubleshooting.

Advantages of Single Spiral Conical Mixer:

High Mixing Uniformity: Single Spiral Conical Mixer adopts a special structural design and mixing method, enabling uniform mixing of materials with different particle sizes, densities and shapes—ensuring consistent mixing results for multi-type material blending.The spiral rotates inside the conical container, making materials continuously flip, fold and cross-move inside the container, thus achieving uniform material mixing—ideal for high-precision powder mixing requirements in pharmaceutical and food industries.

Easy Operation & Maintenance: Single Spiral Conical Mixer features relatively simple operation—just put materials into the container and start the mixer to begin mixing, reducing operational complexity for production line engineers.Meanwhile, the equipment is relatively easy to clean—only the container and agitator need to be cleaned, reducing the workload and time cost for operators, which is favored by factory managers for cost control.

Strong Adaptability & Wide Application: Single Spiral Conical Mixer is suitable for mixing various materials, including powders, granules, and mixtures of granules and powders—serving as a multi-functional mixing solution for chemical, feed and pharmaceutical sectors.It can handle materials with various different properties, such as large differences in particle size, density and humidity, showing strong adaptability—meeting the diverse mixing needs of different industrial procurement scenarios.

Material Integrity Protection: Compared with high-speed mixing equipment, the gentle mixing action of Single Spiral Conical Mixer will not cause material deformation or damage—perfect for fragile granular material mixing and thermal-sensitive material processing.For fragile granules or thermal-sensitive materials, this mixing method can maintain the physical properties of materials, ensuring the quality of final products—critical for pharmaceutical and food manufacturers with strict product quality requirements.

Technical Parameters

Your requirements are the basis for our development and a daily challenge to bring to fruition, please do not hesitate to inquiry us.
