Vertical Mixer Dryer
More Pictures
Features
- The machine occupies a small area, has low energy consumption, large capacity, saves labor, is easy to operate, saves time and effort, and has a fast and uniform mixing effect. It adopts spiral stirring for feeding, which is convenient for feeding. Workers can feed materials directly standing on the ground (or use a fan to directly send plastic granules into the barrel from the pelletizer).
- Vertical design, easy to operate and maintain.
- The parts in contact with raw materials are made of stainless steel, which is easy to clean and avoids rusting.
- Synchronous stirring and drying. During the drying process of materials, they keep flowing continuously, so that heat penetrates evenly, the drying time is short and the materials are not easy to agglomerate.
- The heating type machine integrates drying and mixing functions. When drying is not needed, it can be used for plastic stirring and homogenization by simply turning off the heating switch and fan switch, realizing one machine with two uses.
- It is equipped with protection devices and functions such as automatic operation timing, overload protection and feeding limit alarm.
- It can be widely used for stirring and homogenizing plastic sheets, crushed materials, powder materials, plastic granules, new and old plastic materials, and materials with added color masterbatches, etc.
Overview
The vertical mixer dryer is mainly used for mixing plastic granules of multiple colors. This equipment has two core functions: hot air drying of plastic particles; and uniform color mixing of plastic particles with functional masterbatches and fillers. It is an essential supporting equipment for injection molding machines and granulators.The vertical mixer dryer adopts the method of rotating stirring blades to turn over plastic raw materials for rapid mixing, making it one of the indispensable supporting equipments for injection molding machines and granulators.
Working Principle of Vertical Mixer Dryer:
In this machine, the rapid rotation of the screw lifts the raw materials from the bottom center of the barrel to the top, then scatters them in an umbrella - shaped manner and returns them to the bottom. In this way, the raw materials roll up and down and are stirred in the barrel, and a large amount of raw materials can be evenly mixed in a short time.Air is sent to the electric heating box by the blower, turned into hot air after heating, and then automatically controlled by the electronic temperature regulator.The hot air enters at an appropriate temperature, conducts heat exchange along the way, and continuously takes away moisture, thus achieving efficient drying of plastic materials.
Main Structure of Vertical Mixer Dryer:
- Frame part: All working parts of the machine are installed and fixed on the frame. The frame of the machine is made of high - quality carbon steel plates and channel steels through welding, which meets strict product qualification standards and specific process requirements to serve the purpose of the machine.
- Transmission connection part: The machine uses a cycloidal pinwheel reducer to drive the main shaft to rotate. The working part of the main machine adopts nylon pin as the transmission connector for gear meshing and driving transmission, which is convenient for assembly and maintenance.
- Stirring working part: The power is transmitted from the driving wheel to the main shaft through the pin coupling. It can evenly turn over the materials in the stirring chamber, ensuring sufficient mixing of the materials and thus greatly reducing the material residue.
Operation Process of Vertical Mixer Dryer:
- Material preparation: First, prepare the materials to be mixed and put them into trays respectively. The materials should be slightly moist, not completely liquid, solid or semi - solid. If the materials are too rough, they can be crushed by a crusher first before preparation for mixing.
- Feeding: Open the upper cover of the product, put the newly prepared materials into the U - shaped trough, and add a small amount of water, which should not exceed the level of submerging the pulp shaft, so as to facilitate better mixing of the materials.
- Mixing: Cover the upper cover of the trough, lock the fixing screws of the trough, then turn on the switch to start mixing the materials.
- Discharging: First turn off the switch, loosen the fixing screws of the trough, tilt the trough, and pour the materials into the tray.
Why Choose Our High-Efficiency Industrial Vertical Mixer Dryer?
- Dual Functions in One for Enhanced Production Efficiency: Our industrial vertical mixer dryer adopts an integrated design, completing mixing and drying processes in the same sealed container—replacing the traditional segmented processing mode that requires multiple devices.This design not only shortens processing time by approximately 50% but also reduces equipment floor space and cuts energy consumption—key advantages for factory managers optimizing production lines.
- Excellent Mixing Performance & Thermal Efficiency: Equipped with a spiral agitator or multi-layer paddle design, our vertical mixer dryer enables materials to form a 3D movement trajectory inside the equipment, achieving dead-angle-free mixing—critical for consistent material quality demanded by procurement teams.Meanwhile, the combination of jacketed heating and vacuum system in our vacuum vertical mixer dryer ensures thermal efficiency reaches 75-85%—far exceeding the 40-50% level of traditional drying equipment.
- Adaptable to Various Material Properties: Whether handling heat-sensitive materials, oxidizable substances, or high-viscosity materials, our custom vertical mixer dryer can process them properly via customizable configurations—ideal for procurement teams with diverse production needs.The vertical mixer dryer offers multiple options such as low-temperature gentle air drying and vacuum low-temperature drying, ensuring the activity of sensitive components remains uncompromised—essential for pharmaceutical and food industry applications.
- Intelligent Control System: Modern industrial vertical mixer dryers are equipped with a PLC automatic control system, which accurately adjusts parameters including mixing speed, temperature, vacuum degree, and residence time—simplifying operations for production line engineers.With a user-friendly interface, it supports recipe storage and remote monitoring—guaranteeing batch-to-batch consistency, a top priority for factory quality management.
Technical Features of Industrial Vertical Mixer Dryer:
- Structural Design & Working Principle: The industrial vertical mixer dryer adopts a vertical tower structure, allowing materials to form a circular flow in the vertical direction—ensuring uniform processing throughout the batch.High-speed rotating spiral blades lift materials from the bottom and scatter them back down at the top via centrifugal force, creating a continuous cycle that eliminates material buildup.Meanwhile, the heating system (either via hot air injection or jacketed heating) ensures materials are evenly heated during movement, enabling rapid moisture evaporation—boosting overall drying efficiency.

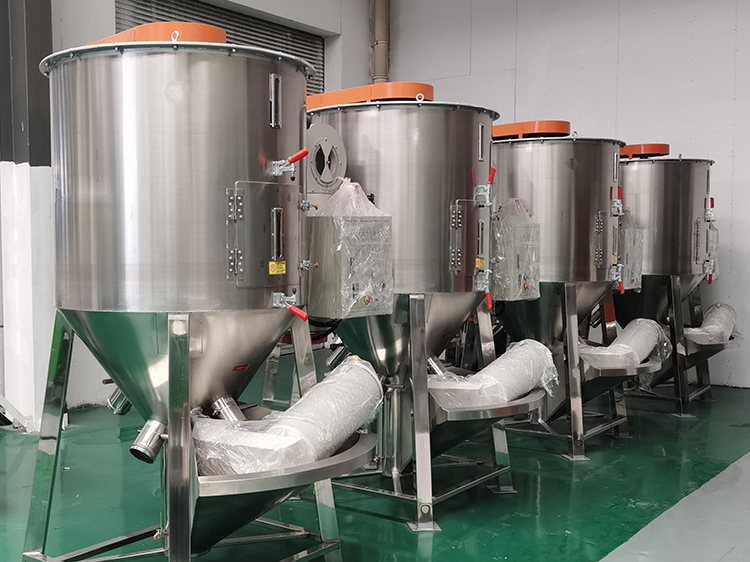

- Diversified Heating System Configurations: Our vertical mixer dryer supports multiple heating methods, including steam, heat transfer oil, hot water, or electric heating—flexible for different factory energy supply conditions.Large-scale vertical mixer dryers can also be equipped with agitator shaft and blade heating functions, further increasing heat exchange area and improving drying efficiency—suitable for high-volume production lines managed by factory directors.
- Vacuum Drying Technology: By integrating a vacuum system, our vacuum vertical mixer dryer creates a negative pressure environment inside the equipment, lowering the boiling point of liquids and enabling rapid evaporation of moisture or solvents at low temperatures—perfect for heat-sensitive materials.This feature is particularly suitable for processing heat-sensitive materials and can reduce drying time by over 40%—a significant time-saving benefit for production line scheduling.
- Anti-Adhesion and Easy-Clean Design: For viscous materials, the inner wall of the vertical mixer dryer can be coated with Teflon or made of mirror-polished stainless steel, combined with a self-cleaning scraper design to effectively prevent material adhesion—reducing maintenance workload for engineers.Meanwhile, the CIP (Clean-in-Place) online cleaning system simplifies equipment maintenance processes and meets GMP standards—critical for pharmaceutical and food industry compliance required by procurement teams.
Application Fields of Vertical Mixer Dryer:
- Chemical Industry: In the chemical sector, the industrial vertical mixer dryer is used to process materials such as pigments, chemical fertilizers, and polymers, achieving efficient mixing and drying—reliable for chemical factory production needs.Its sealed design also prevents leakage of toxic and harmful substances, ensuring operational safety—a key concern for factory safety managers.
- Pharmaceutical Industry: The pharmaceutical industry has extremely high hygiene requirements. The aseptic design of our vertical mixer dryer complies with cGMP standards, meeting the mixing and drying needs of active pharmaceutical ingredients (APIs) and ensuring product purity.

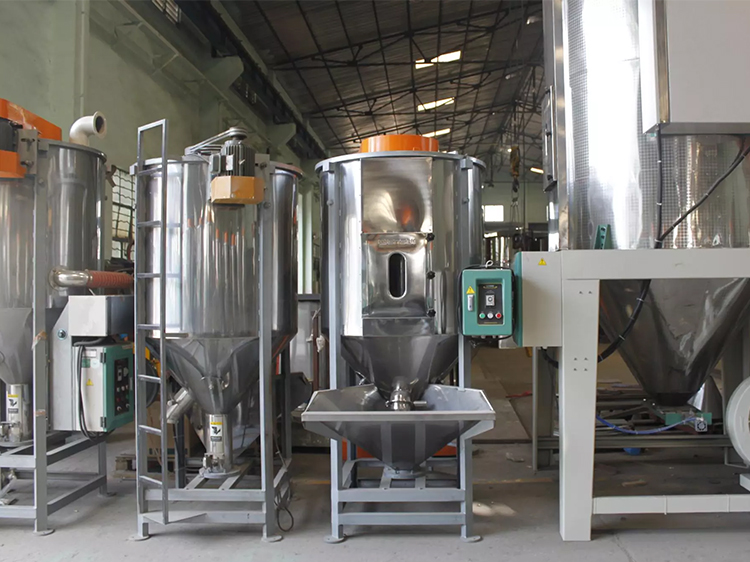

- Food Industry: Our food-grade vertical mixer dryer is used for processing food materials such as starch, seasonings, and nutritional health products—meeting food safety standards.Made of food-grade stainless steel, the equipment has a high surface finish to prevent bacterial growth.
- New Energy and Environmental Protection: In emerging fields such as lithium battery materials, mineral powder, and sludge treatment, the vertical mixer dryer demonstrates strong adaptability—supporting green production initiatives.With explosion-proof configurations and corrosion-resistant material options, it can meet various special process requirements—ideal for new energy factories and environmental protection projects.
- Chemical industry
Technical Parameters
Technical Parameters
| Model | Motor Power(kw) | Volume(m³) | Speed（RPM) | Heating Model | |
| Heating Power(kw) | Fan Power(kw) | ||||
| LHG-150 | 2.2 | 150 | 350 | 10 | 0.75 |
| LHG-300 | 2.2 | 300 | 350 | 12 | 0.75 |
| LHG-500 | 3 | 500 | 350 | 15 | 1.1 |
| LHG-1000 | 4 | 1000 | 350 | 18 | 2.2 |
| LHG-1500 | 5.5 | 1500 | 350 | 20 | 2.2 |
| LHG-2000 | 5.5 | 2000 | 350 | 30 | 3 |
| LHG-3000 | 7.5 | 3000 | 350 | 36 | 3 |
| LHG-5000 | 7.5 | 5000 | 350 | 40 | 4 |
| LHG-6000 | 11 | 6000 | 350 | 45 | 5.5 |
| LHG-7000 | 11 | 7000 | 350 | 50 | 5.5 |
| LHG-8000 | 11 | 8000 | 350 | 55 | 7.5 |
| LHG-10000 | 15 | 10000 | 350 | 60 | 7.5 |
| LHG-12000 | 15 | 12000 | 350 | 72 | 7.5 |
Your requirements are the basis for our development and a daily challenge to bring to fruition, please do not hesitate to inquiry us.
