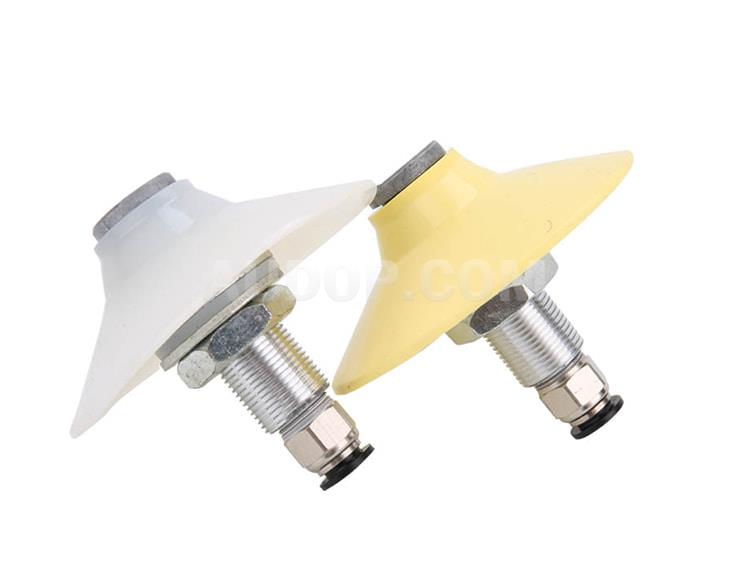

Arch-Breaking Air Disc
More Pictures
Features
- The vibration effect of the arch-breaking air disc acts directly on the powder itself, and long-term use will not cause any adverse effects on the silo.
- The arch-breaking air disc occupies small space, is easy to install, has low maintenance cost and is very convenient to use.
- Applied in various powder and granule industries, such as alumina, fly ash, barite, bentonite, black smoke powder, cement, clay, limestone, starch cement slag, diatomite fly ash, flour, fluorite, gypsum, hydrated lime, perlite, PVC, resin, table salt, sand, soda ash, sucrose, soap powder, talc powder, etc.
Overview
The arch-breaking air disc is an economical and feasible arch-breaking solution for pipelines and silos. Its air nozzle is made of high polymer material, which can be easily installed on pipelines or silo walls, and is suitable for dry bulk materials with low blockage degree.The arch-breaking air disc is a highly effective arch-breaking equipment in various powder and granule industries at present. It combines the combined effects of vibration flow assistance and air-jet flow assistance, enabling convenient and smooth unloading of various materials from silos of various forms.
The flow aid disc is made of wear-resistant silica gel material. During operation, it can generate two actions simultaneously: air blowing and vibration. Compressed air is sprayed around along the silo wall, and due to the continuous change of air pressure, the edge of the air disc will produce high-frequency vibration. All these effectively promote the downward flow of powder and granule materials in the silo.This product is installed in groups on the upper part of the discharge port. Through the pneumatic principle, it promotes smooth discharge, and is one of the ideal accessories for silos. Intermittent operation is recommended.
Basic Material: Imported high-strength silica gel.
Working Pressure: 34Kpa ~ 400Kpa.
Working Temperature: -30 degree centigrade ~ 120 degree centigrade.
Working Mode: Continuous or intermittent (adjustable).
Technical Parameters
Technical Parameters
| Models | Diameter of the disc | A | B | 0 | D | E | F | Trachea Selection |
| Miniature 48 | 2” | 1/8* NPT | M13 | 1/2" (13mm) | 9/16” (14mm) | 11/2” (38mm) | After Installation 54mm | 1/4(6mm) Pipes |
| Standards 43 | 4” | 4/4 NPT | 1/2" NPT | 7/8" (22mm) | 13/16" (30mm) | 3" (76mm) | After Installation 103mm | 3/8”-1/2” (10-13mm) Pipes |
| Heat Resistant： -55~200℃ | ||||||||
Your requirements are the basis for our development and a daily challenge to bring to fruition, please do not hesitate to inquiry us.
