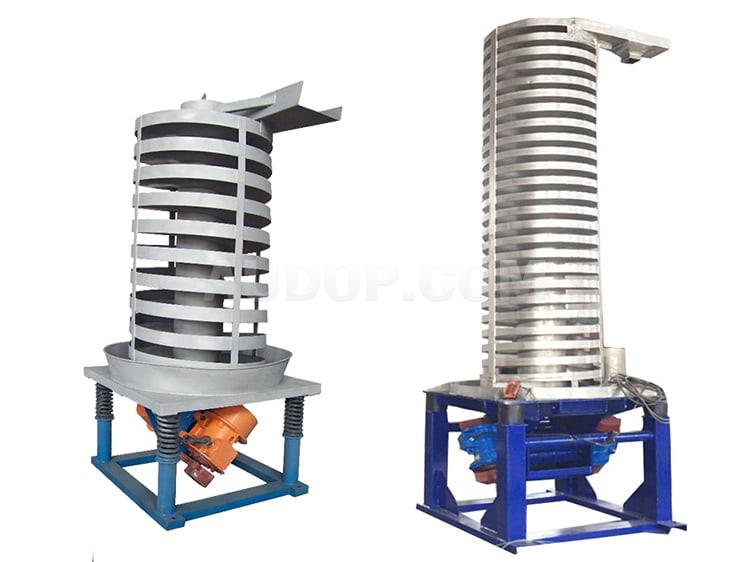

Vertical Vibrating Elevator
- When the vertical elevator is working, the return journey of the material placement plate does not occupy the working rhythm, so it has high transportation efficiency and is not affected by high transportation speed.
- It is only used for transporting piece goods, and the raw materials have minimum specification restrictions.
- It has a wide load-bearing range, with a maximum load capacity of up to 2000Kg.
- When used with inlet and outlet conveying machinery and equipment, it enables full automation of the entire transportation process and avoids uncertainties caused by manual control.
- It has a simple structure and a small volume.
- It is reliable, easy to maintain, and has low operating costs, which further reduces transportation costs.
Overview

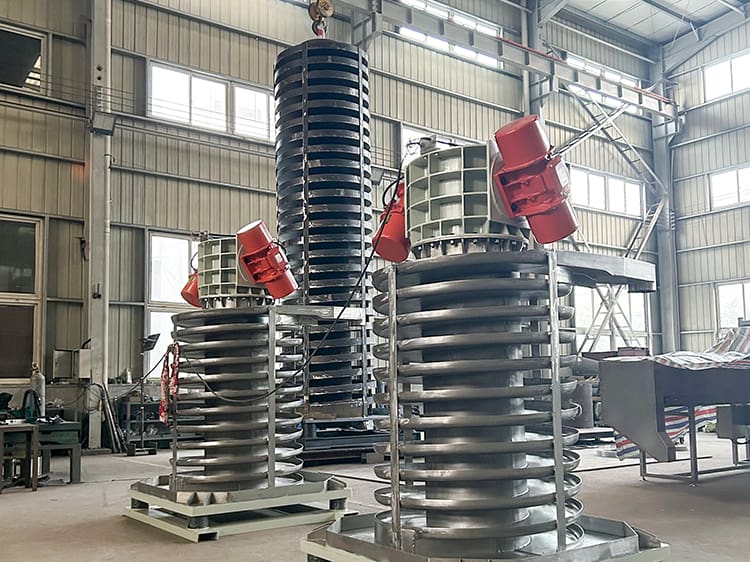

The DZC Vertical Vibrating Elevator is a new-type vertical vibrating conveying equipment, widely used for lifting block, powder and short-fiber solid materials in industries such as mining, metallurgy, machinery, building materials, chemical engineering, rubber, pharmaceuticals, electric power, grain, food, etc. While lifting materials upwards, it can also complete the drying and cooling of materials.This vertical vibrating elevator can be used for feeding materials to filling machines and other equipment. Compared with other elevator equipment, it is less likely to damage the shape of materials.
The DZC Vertical Vibrating Elevator is divided into two structures: open-slot type and closed type. According to different process requirements, it can be designed as a screening elevator with material particle classification function and an elevator for flammable and explosive materials.
Working Principle of Vertical Vibrating Elevator:

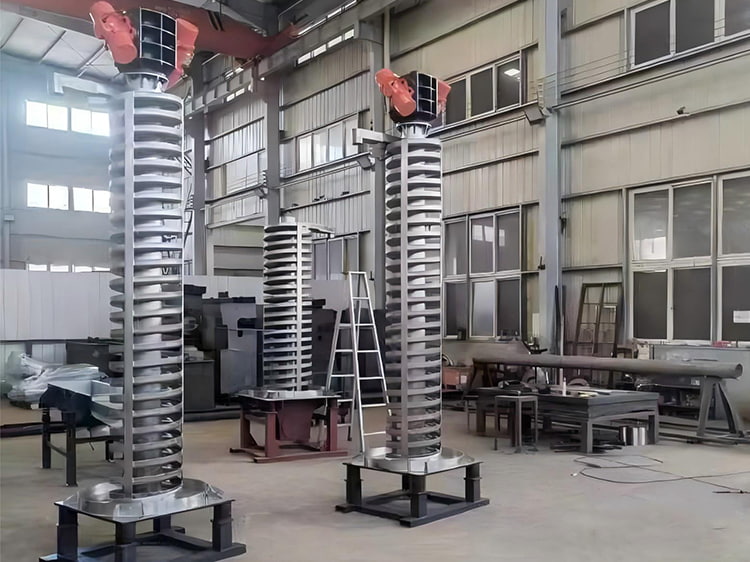

The vibration motor, which is the driving device of the DZC series vertical vibrating conveyor (also known as spiral vertical vibrating elevator), is installed at the lower part of the conveying tower. Two vibration motors are installed symmetrically and crosswise. The conveying tower is composed of a pipe body and spiral conveying grooves welded around the pipe body. The conveying tower is seated on the vibration damping device, which consists of a base and vibration isolation springs.When the vertical conveyor works, according to the self-synchronization principle of dual vibration motors, the vibration motors generate exciting force to force the entire conveying tower body to perform spatial composite vibration of horizontal circular motion and upward vertical motion. The materials in the spiral grooves are affected by the conveying grooves, making uniform-speed throwing circular motion and moving upward along the conveying tower body, thus completing the upward (or downward) conveying operation of materials.
Product Advantages of Vertical Vibrating Elevator:
Multi-Functional Integration: The vertical material conveyor not only achieves vertical material conveying but also simultaneously completes process operations such as drying, cooling, and heating, reducing the need for additional equipment investment in integrated material handling systems.
Material Handling: The vibratory conveying technology is particularly suitable for fragile material handling, minimizing product damage to the greatest extent and maintaining material integrity during the conveying process.
Compact Structure: The compact structure conveyor has a small floor space requirement, making it suitable for installation in limited spaces and helping optimize production layout.
Low-Maintenance Design: The low-maintenance material conveyor features a simple structure with no lubrication requirement, resulting in low maintenance costs and a long service life for long-term operational efficiency.
Eco-Friendly & Energy-Saving: The eco-friendly material conveyor adopts a closed structure that effectively prevents dust dispersion, meeting environmental protection standards; its low energy consumption ensures economical operating costs for energy-efficient vertical conveying.
Selection Guide of Vertical Vibrating Elevator:
Material Characteristics: Key factors include material particle size, bulk density, humidity, viscosity, etc.—critical references for material conveyor selection.
Process Requirements: Confirm required conveying capacity, lifting height, and whether auxiliary functions (e.g., cooling, drying) are needed to match conveyor sizing with process needs.
Installation Environment: Evaluate available space size, sealing and dust-proof requirements, and special protection needs to ensure the material conveyor fits the on-site installation conditions.
Production Capacity: Select appropriate conveyor models and configurations based on production scale to ensure the conveying equipment matches the overall production efficiency.
Technical Parameters
Technical Parameters
| Model | Conveying volume (t/h) | Conveyor trough diameter (mm) | Conveying width (mm) | Conveying height (m) | Vibrations (min) | Double amplitude(mm) | Electric power(kw) | Weight(kg) |
| DZC300 | 1 | 300 | 77 | ≤2.0 | 960 | 67 | 2×0.4 | 680 |
| DZC500 | 2 | 500 | 140 | ≤3.0 | 68 | 2×0.75 | 1010 | |
| DZC550 | 3 | 550 | 152 | ≤3.5 | 68 | 2×1.5 | 1190 | |
| DZC600 | 3 | 600 | 163 | ≤4.0 | 67 | 2×1.5 | 13210 | |
| DZC800 | 4 | 800 | 224 | ≤4.5 | 68 | 2×2.2 | 1590 | |
| DZC850 | 4 | 850 | 224 | ≤5.0 | 69 | 2×2.2 | 1750 | |
| DZC900 | 3.5 | 900 | 185 | ≤6.0 | 69 | 2×3.0 | 2100 |
Your requirements are the basis for our development and a daily challenge to bring to fruition, please do not hesitate to inquiry us.
