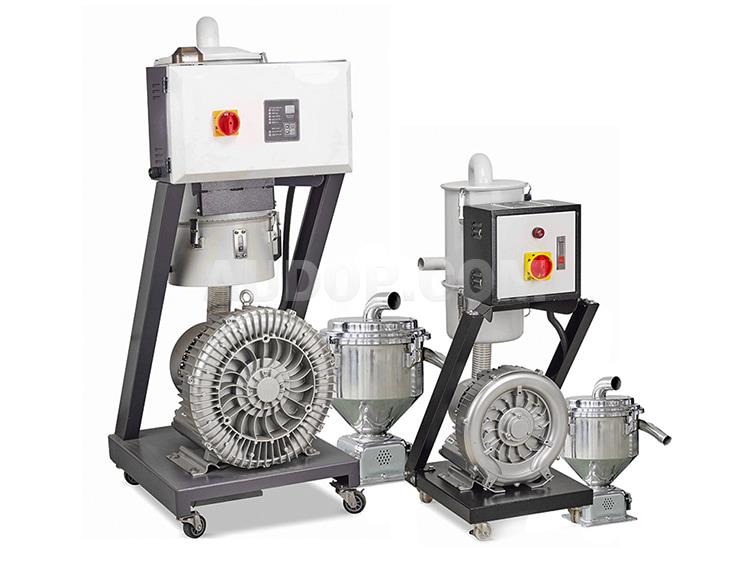

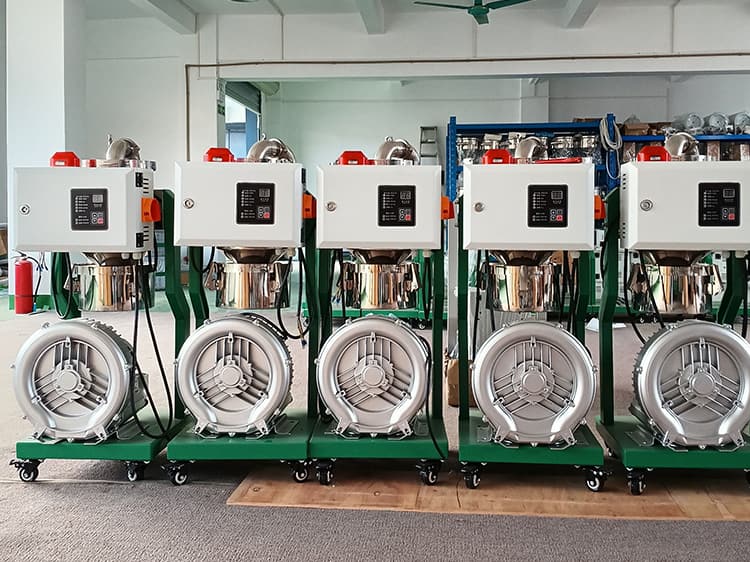

High-Power Vacuum Loader
- High-Power Vacuum Loader is a model specially developed for scenarios with large material consumption, catering to the high-volume material needs of industrial production.
- The motor power, feeding pipe diameter and hopper capacity all adopt enlarged configurations to meet the material handling requirements of large-scale industrial operations.
- Equipped with microcomputer control, it provides material shortage and overload alarms, ensuring safe and reliable operation of the material conveying system.
- It has a small size, occupies little space and features flexible operation, making it easy to integrate into different industrial production line layouts.
- Customizable one-machine multi-hopper type vacuum loaders are available to meet the diverse material conveying needs of different industrial production lines.
Overview
High-Power Vacuum Loader is a model developed for scenarios with large material consumption, long conveying distance, and granular material conveying. It is an ideal choice for industries requiring efficient handling of bulk granular materials.The motor power, feeding pipe diameter and hopper capacity all adopt enlarged configurations to meet customer requirements, ensuring stable and high-volume material transfer for industrial production.

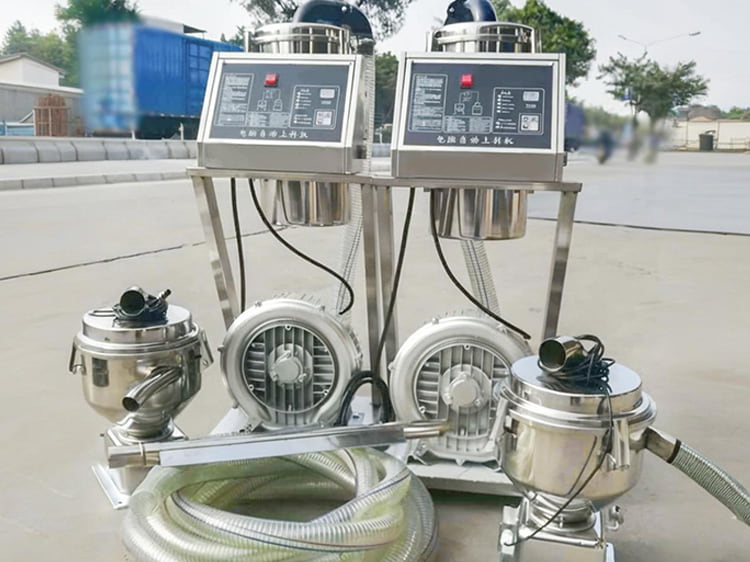

High-Power Vacuum Loaders are widely used in raw material conveying for high-machine operations such as injection molding, extrusion machinery, and blow molding machinery. They can automatically feed materials to the machine's feeding port, optimizing the material supply process for industrial production lines.When the material barrel of the machine is short of materials, a signal will be sent to the High-Power Vacuum Loader, enabling timely material replenishment to avoid production interruptions.The vacuum loader uses the principle of air suction to convey plastic raw materials into the machine's material barrel. When the machine's hopper is full of raw materials, the vacuum loader will stop working, and resume conveying when the machine is short of raw materials again. This ensures that the machine's hopper is always full of raw materials, realizing uninterrupted material supply operation for continuous industrial production.High-Power Vacuum Loaders are designed for customers with large material suction demands, effectively meeting their required material suction volume to support high-efficiency production.
Technical Parameters
Technical Parameters
Model | Motor Power(kw) | Skip Capacity(L) | Material Diameter(mm) | Conveying Distance(m) | Output(kg/h) |
| ADP-1300 | 1.3 | 7.5 | 38 | 2-4 | 100-300 |
| ADP-1600 | 1.6 | 7.5 | 38 | 2-4 | 300-400 |
| ADP-2200 | 2.2 | 7.5 | 38 | 3-5 | 400-500 |
| ADP-3000 | 3 | 12 | 51 | 3-6 | 500-600 |
| ADP-4000 | 4 | 25 | 51 | 4-6 | 600-700 |
| ADP-5500 | 5.5 | 40 | 51 | 4-7 | 700-800 |
| ADP-7500 | 7.5 | 40 | 51 | 4-7 | 800-900 |
Your requirements are the basis for our development and a daily challenge to bring to fruition, please do not hesitate to inquiry us.
