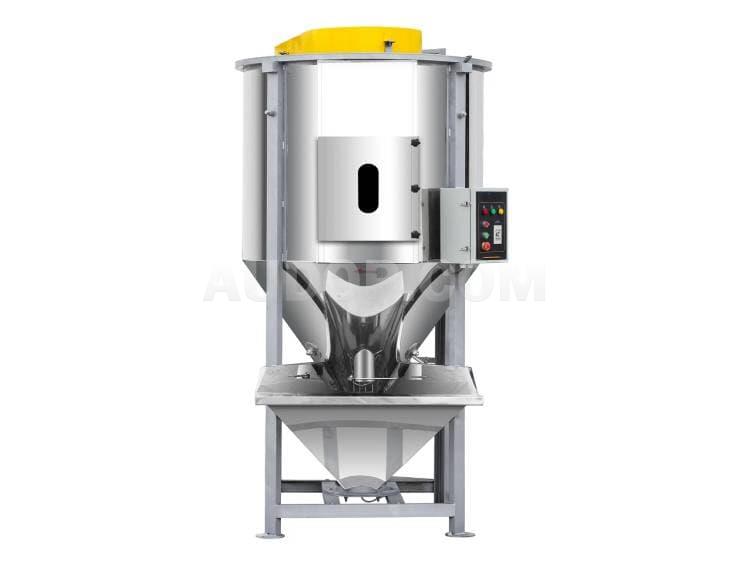

Homogenizing Silo
- Low power consumption, small floor area, low price and high cost performance. This cost-effective homogenizing silo is a cost-saving choice for enterprises.
- The spiral circulation mixing makes the raw materials mix more uniformly and quickly. The spiral circulation homogenizing silo ensures high mixing quality.
- Suitable for mixing various plastic raw materials and color masterbatches, and the effect is better when mixing new materials, old materials and color masterbatches. The plastic material homogenizing silo meets the needs of plastic processing enterprises.
- The parts of the equipment that contact with raw materials are all made of stainless steel, which is easy to clean and avoids rust.
- Equipped with electric control safety protection device to ensure safe operation.
Overview
The homogenizing silo is mainly composed of: motor wheel, motor, barrel body, screw, discharge port, material cleaning port, pulley, observation window, man ladder, inlet, electrical box, cyclic blanking port, feeding port and other components.It is mainly used for raw material mixing. The inner lining of the tray adopts polypropylene board or stainless steel plate, so it is not easy to stick materials. This industrial homogenizing silo with anti-sticking design effectively improves production efficiency.The homogenizing silo is wear-resistant. Equipped with a cycloidal pinwheel reducer, it has the characteristics of compact structure, convenient operation, uniform mixing, and easy discharge and transportation. This high-performance homogenizing silo is suitable for long-term continuous production.It is widely used in plastic dyeing, plastic granulation, color masterbatch manufacturing, pelletizing, plastic modification, pipe, sheet, recycled material recycling processing, large-scale injection molding, chemical industry, food and other industries. This multi-industry applicable homogenizing silo meets the mixing needs of different production scenarios.
In industrial powder production, due to changes in powder properties or production process parameters caused by raw materials or upstream equipment, there will be a certain range of differences in various indicators among products of different batches.In order to stabilize product quality and eliminate the impact on subsequent processes, many powder processes must be equipped with large-scale powder mixing homogenizing silos to make various indicators of powder finished products in different batches uniform and stable. This large-scale powder homogenizing silo is a key equipment to ensure stable product quality.Then, the large-scale powder mixing homogenizing silo is also widely used in material batching and mixing of different industries and different types.According to the different ways of energy supply, the mixing and homogenizing forms can be divided into three types: gravity type, mechanical type and pneumatic type.The choice of powder mixing and homogenizing method mainly depends on the material properties and working conditions. Our professional team can recommend the most suitable powder homogenizing solution according to your specific needs.After years of research and development for different industries, different materials and different working conditions, our company has developed a large-scale powder mixing homogenizing silo, a new type of powder mixing homogenizing silo that integrates three kinds of kinetic energy: gravity, mechanical and pneumatic. This integrated kinetic energy homogenizing silo has better mixing effect and adaptability.
Working principle of Homogenizing Silo:
The rapid rotation of the screw lifts the raw materials from the center of the bottom of the barrel to the top, then scatters them in an umbrella shape and returns to the bottom. In this way, the raw materials are rolled up and down and stirred in the silo, and a large amount of raw materials can be uniformly mixed in a short time. The efficient mixing homogenizing silo realizes rapid and uniform mixing of raw materials.
Main structure of Continuous Homogenizing Silo:
Frame part: All working parts of the machine are installed and fixed on the frame. The frame of the machine is made of high-quality carbon steel plates and channel steel by welding, and has met the purpose of the machine through strict product qualification verification and specific process requirements. The durable frame homogenizing silo ensures stable operation of the equipment.
Transmission connection part: The machine uses a cycloidal pinwheel reducer to drive the main shaft to rotate. The working part of the main machine uses nylon pin as the transmission connector to engage teeth and transmit drive, which is convenient for assembly and maintenance. The easy-maintenance homogenizing silo reduces equipment maintenance costs.
Mixing working part: The transmission wheel transmits power to the main shaft through the pin coupling. It turns the materials evenly in the silo to ensure full mixing of the materials, thus greatly reducing the residual amount of materials. The low material residue homogenizing silo improves raw material utilization rate.
Performance characteristics of Homogenizing Silo:
- Four-wheel vertical design, small volume and convenient movement. This mobile homogenizing silo is easy to adjust the installation position.
- The silo and mixing blades are made of stainless steel, which is easy to clean and free of pollution. The stainless steel homogenizing silo is suitable for food and pharmaceutical industries with high hygiene requirements.
- The mixer is equipped with a cycloidal pinwheel reducer, which has low noise and long service life. The low-noise durable homogenizing silo creates a good working environment.
- It completes uniform mixing in a short time with low energy consumption and high efficiency. The energy-saving high-efficiency homogenizing silo helps enterprises reduce production costs.
- The silo cover and silo bottom are formed by stamping, with precise fit and higher durability.
- Side lock safety protection device ensures the safety of operators and the machine itself. The safe operation homogenizing silo complies with industrial safety standards.
- Timer allows selecting mixing time between 0-30 minutes. The timed control homogenizing silo realizes intelligent mixing operation.
- Clamping design and inlaid sealing strip prevent raw material leakage. The leak-proof homogenizing silo avoids raw material waste and environmental pollution.
- Foldable silo cover, double-sided opening, convenient for feeding. The easy-feeding homogenizing silo improves feeding efficiency.

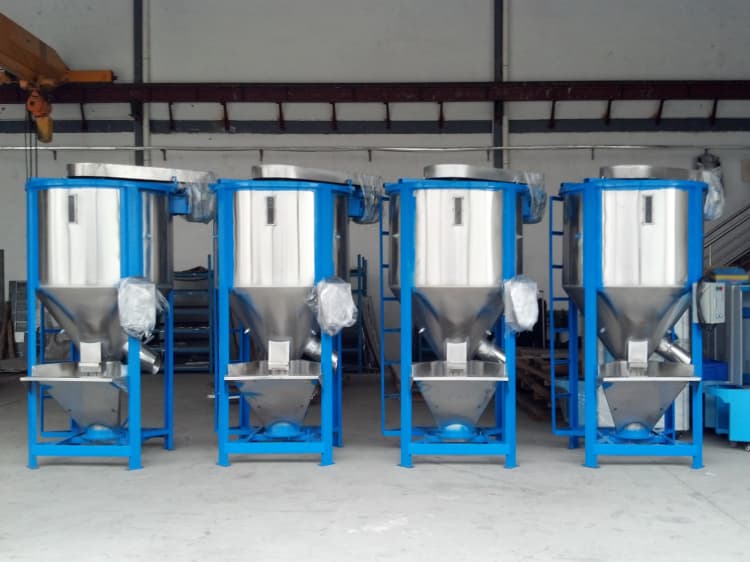

Maintenance of Powder Mixing Homogenizing Silo:
- After each shift (use) of the equipment, 5S treatment must be carried out on the inside and outside of the equipment and the surrounding site.
- Inspect the rotation of the equipment's agitator (balance and friction) every month. Regular maintenance of the homogenizing silo extends its service life.
- The machine should be placed in a ventilated position to ensure the heat dissipation of the motor and extend the service life of the motor.
- Regularly check whether the belt is loose, and move the motor outward until the belt is tight.
- Regularly add butter to the bearings to ensure lubrication between the bearings.
- If a fault is found during the operation of the machine, it must be shut down and the power supply cut off before handling.
- Before the machine operates, check whether the screws of the ? blades in the barrel are loose; if loose, tighten them.
- It is forbidden to mix tools, hard objects and strips into the barrel.
Technical Parameters
Technical Parameters
This series of products are highly customized according to the customers' requirements. Therefore, we are unable to provide the procedures and parameters at present. If you are interested in this series of products, please contact us immediately. Audop Company will assign experienced engineers to communicate with you as soon as possible.
Your requirements are the basis for our development and a daily challenge to bring to fruition, please do not hesitate to inquiry us.
Stainless Steel Silo
- Stainless steel silo is generally made of 304 or 316L stainless steel. High-grade materials such as 2205, 254SMO and 1.4529 are also available as options.
- The outer shape is either a square silo with rounded corners and conical bottom or a circular silo. All corners adopt arc transitions, ensuring no dead ends, no material residue and an attractive appearance.
- Both inner and outer surfaces undergo high-level polishing treatment. The inner surface roughness can reach Ra≤0.4μm, and the outer surface roughness can reach Ra≤0.8μm.
- The customized hopper cover and butterfly valve are equipped with silicone sealing devices to ensure excellent sealing performance.
- All welding joints are processed with bevels. After double-sided argon arc welding, grinding and polishing treatments are conducted, and the welding quality meets flaw detection requirements.
- It is equipped with customized casters to protect the ground of clean areas from damage without leaving traces.
- The stainless steel silo has sufficient strength and no deformation will occur during use.
Weighing Hopper
- The inner surface is treated with 320# mirror polishing, ensuring smooth powder discharge.
- The corner arc transition allows easy cleaning without dead ends, and the conical bottom design enables fast and thorough material discharge.
- It can be transported by forklift (with forklift ports on two or four sides), hoisted, or manually moved, facilitating operation.
- The tank body can bear a pressure of 0.02MPa (higher pressure can be customized).
- It can be cleaned with high pressure to keep the tank body clean.
- It has a service life of more than 10 years, featuring cost-effectiveness and environmental friendliness.
Powder Storage Silo
- The inner surface of the silo body is 320# mirror-polished, ensuring smooth powder discharge.
- The rounded corner transition allows easy cleaning, and the conical bottom design enables fast discharging.
- Fixed type, no foundation embedded parts required for installation (the silo can be placed on a solid ground). The foot plate is designed with an adjusting seat to adjust the horizontal and vertical position of the silo body.
- It can be cleaned with high pressure (or equipped with a built-in movable 360° rotating spray ball for cleaning) to keep the inside of the tank clean.
- The sealed structure keeps the powder moisture-proof and prevents dust dispersion and pollution.
- Vacuum feeding and vacuum discharging, featuring convenient, hygienic, and clean operation.
- Equipped with a level control switch to automatically control the powder filling height.
- Equipped with a stainless steel air blockage clearer (air cannon) to break arches, clear blockages, assist flow, and eliminate powder bridging.
- Equipped with a ladder for operators to go up and down the silo. It is solid and stable, with humanized design of step spacing and standing gear height for convenient use.
- Service life of more than 15 years, economical and environmentally friendly.
Dry Hopper
- During the drying process, the materials keep flowing continuously, so heat penetrates uniformly, resulting in short drying time and no easy caking. This feature of the dry hopper avoids material waste and ensures stable product quality for manufacturers.
- Double-layer barrel design (economic models adopt single-layer design); the inner layer that contacts materials is entirely made of stainless steel; special thermal insulation materials are installed in the middle interlayer, thus achieving safe and energy-saving effects. The energy-saving dry hopper helps enterprises reduce energy consumption and operating costs.
- Equipped with a custom high-frequency heater, it features fast heating and low power consumption. The high-efficiency heater of the dry hopper shortens preheating time and reduces electricity costs for production workshops.
- Specially designed double-pipe moisture discharge ports can effectively discharge moisture and collect dust, without polluting the working environment. This environmental-friendly dry hopper complies with workshop hygiene standards, suitable for chemical and food industries.
- The barrel is equipped with an access door, making color and material change and cleaning simple and fast. The easy-to-clean dry hopper saves time for production line changeovers and improves overall production efficiency.
- After special modification, this series of dry hopper models can also be used for the crystallization and drying of plastic granules, powder materials, and PET chips. This versatile dry hopper meets the diversified drying needs of plastic processing enterprises.
- Multiple models and large capacities are available; models with one-time loading capacities of 0.5 ton, 1 ton, 1.5 tons, 2 tons, 3 tons, etc., are always in stock for customers to choose from. Various capacity options of the dry hopper satisfy different production scale requirements of factories.
- Integrated drying and mixing functions: when drying is not needed, simply turn off the "heating switch" and "fan switch", and this series of dry hopper models can be used for plastic mixing and homogenization—realizing dual-purpose of one machine. This multi-functional dry hopper reduces equipment investment for enterprises.
Granular Material Silo
- The silo wall is made of tensioned steel and treated with an electroplated coating, ensuring the granular material silo has a long service life and can adapt to harsh industrial environments.
- It is equipped with a movable silo cover, allowing operators to open, close, and lock the granular material silo on the ground, which improves operational safety and convenience for production line workers.
- It ensures the consistency of the properties and color of each batch of materials, which is crucial for maintaining product quality in industrial production and meeting the strict requirements of factory production lines.
- The granular material silo requires small investment, occupies little space, and saves labor costs—these advantages help enterprises reduce production costs and improve economic benefits.
- It can be connected with various machines, having a wide range of applications. The granular material silo is suitable for different industrial fields.
- The hopper of the granular material silo can be easily opened and disassembled, facilitating cleaning work. This reduces the workload of maintenance personnel and ensures the cleanliness of the granular material silo to avoid material contamination.
- The fan of the granular material silo has small power but fast feeding speed, which saves energy costs for enterprises. It is an energy-efficient equipment that helps reduce the overall operation costs of production lines.
- The size of the granular material silo can be customized into various capacity specifications according to customer requirements. It can meet the different material storage demands of factories of all sizes.
- The granular material silo is light in weight and can be moved anywhere according to production needs. This flexibility allows it to be flexibly arranged in different positions of the production line.
- The side ladder design of the granular material silo is not only safe but also convenient for observing, installing, and maintaining the silo tower. It improves the safety and efficiency of maintenance work for production line engineers and maintenance personnel.
