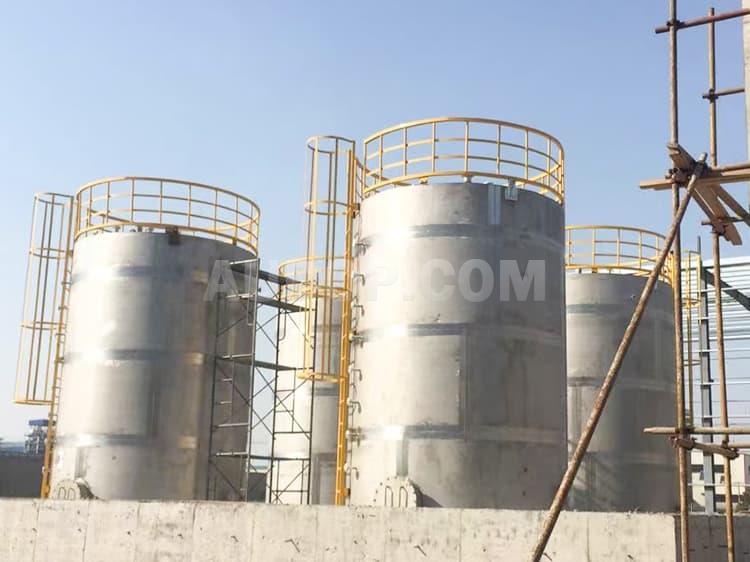

Outdoor Large-Scale Silos
More Pictures
Features
- Large storage capacity of steel silos: The capacity of a single silo ranges from 20 to 200 tons.
- Optional connection with level sensors or weighing sensors. It allows real-time monitoring of the amount of materials stored in the silo, facilitating customers to replenish materials in the silo.
- The silo does not contaminate raw materials. It has an elegant and generous appearance, is sturdy and durable, and its surface does not oxidize or change color for a long time.
- Safe and reliable, with good vacuum tightness, enabling long-term storage of materials.
- Equipped with a top-mounted dust collector, which efficiently filters dust and prevents air pollution. It is also equipped with a pulse dust removal device that can effectively remove dust from the filter elements and is not easy to be blocked.
- Equipped with a safety pressure relief valve to protect the silo body or the top-mounted dust collector from damage due to excessive pressure.
- Equipped with a cleaning door and an internal cleaning ladder, making cleaning and maintenance convenient.
- Saves site occupation, improves management efficiency and reduces labor costs.
Overview
Outdoor large-scale silos are mainly composed of storage bins, as well as feeding, discharging, control, metering, distribution and dust removal systems. They are widely used in material management for high-yield companies. These outdoor large silos can greatly improve the utilization rate of the site, save storage costs, facilitate production site management, make material statistics easier, and reduce labor and material resources.
The tank body of the outdoor large-scale silo is rolled by professional manufacturing equipment. The thickness of the plate increases layer by layer from top to bottom to enhance strength. Each circle is stacked upward with plates of 1.5-meter width, and the seams of each circle are welded in a staggered manner to form a mesh structure. This greatly improves the strength of the silo body as well as its typhoon resistance and earthquake resistance, ensuring the safety and reliability of the silo. The silo body is installed with full-sealed welding, which ensures the silo has good air tightness and prevents rainwater leakage.
Technical Parameters
Technical Parameters
This series of products are highly customized according to the customers' requirements. Therefore, we are unable to provide the procedures and parameters at present. If you are interested in this series of products, please contact us immediately. Audop Company will assign experienced engineers to communicate with you as soon as possible.
Your requirements are the basis for our development and a daily challenge to bring to fruition, please do not hesitate to inquiry us.
